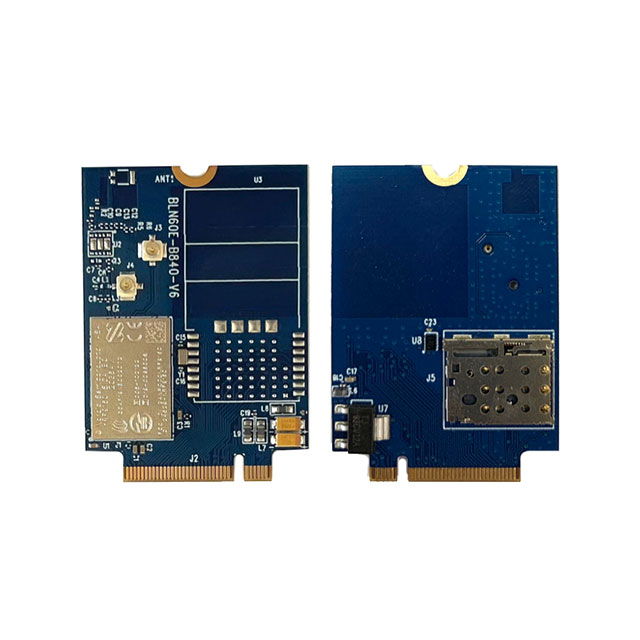

LN60E

Active

Fanstel Corp.

LTE-M, NB-IOT MODULE, M.2 CONNECTOR

Search across all available documentation for this part.

Active

Fanstel Corp.

LTE-M, NB-IOT MODULE, M.2 CONNECTOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular LTE-M/NB-IoT Transceiver Module Antenna Not Included, U.FL Card Edge

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LN60E	LN60 Series

Antenna Type	Antenna Not Included, U.FL	Antenna Not Included, U.FL, Integrated, Trace + U.FL
Data Rate	125 kbps	125 kbps
For Use With/Related Products	-	nRF9160, LN60G
Memory Size	1 MB, 256 kB	1 - 256 MB
Mounting Type	Card Edge	Card Edge
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	23 dBmW	23 dBmW
Protocol	LTE-M/NB-IoT	Thread, Zigbee®, Bluetooth v5.2, LTE-M/NB-IoT, Bluetooth v5.1
RF Family/Standard	Cellular	Cellular, 802.15.4, Bluetooth
Sensitivity	-108 dBm	-108 dBm
Serial Interfaces	GPIO, UART, USB	GPIO, UART, USB
Supplied Contents	-	Board(s)
Type	-	Cellular Development Platform
Utilized IC / Part	NRF9160	BT840E, NRF9160, BT840F
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2.5 V	2.5 V

RF TXRX MOD BT CELL U.FL CARD

Part	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Serial Interfaces	Data Rate	RF Family/Standard	Package / Case	Memory Size	Sensitivity	Mounting Type	Utilized IC / Part	For Use With/Related Products	Supplied Contents	Type
Fanstel Corp. LN60E840E	Antenna Not Included, U.FL	85 °C	-40 °C	23 dBmW	Bluetooth v5.1, Bluetooth v5.2, LTE-M/NB-IoT, Thread, Zigbee®	2.5 V	5.5 V	GPIO, UART, USB	125 kbps	802.15.4, Bluetooth, Cellular	Module	1 MB, 256 kB	-108 dBm	Card Edge	BT840E, NRF9160
Fanstel Corp. EV-LN60G																LN60G, nRF9160	Board(s)	Cellular Development Platform
Fanstel Corp. LN60E	Antenna Not Included, U.FL	85 °C	-40 °C	23 dBmW	LTE-M/NB-IoT	2.5 V	5.5 V	GPIO, UART, USB	125 kbps	Cellular	Module	1 MB, 256 kB	-108 dBm	Card Edge	NRF9160
Fanstel Corp. LN60G840F	Integrated, Trace + U.FL	85 °C	-40 °C	23 dBmW	Bluetooth v5.1, Bluetooth v5.2, LTE-M/NB-IoT, Thread, Zigbee®	2.5 V	5.5 V	GPIO, UART, USB	125 kbps	802.15.4, Bluetooth, Cellular	Module	1 MB, 256 kB	-108 dBm	Card Edge	BT840F, NRF9160
