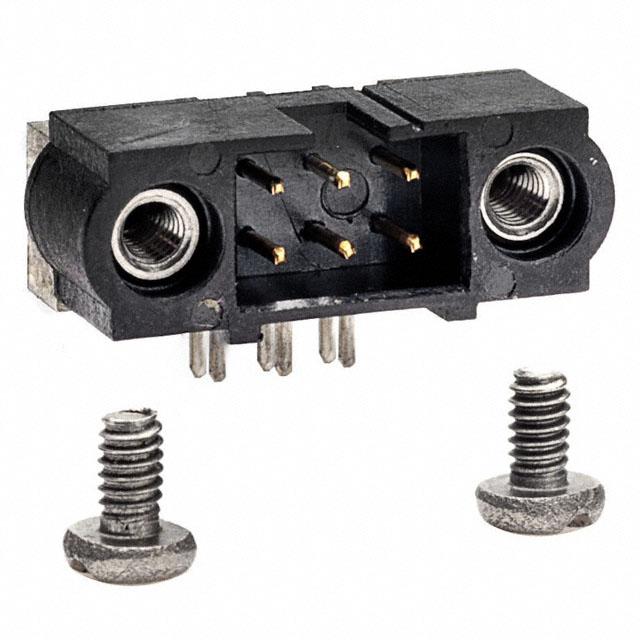

BOARD CONNECTOR, 6 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, GUIDE SLOT, BLACK INSULATOR, RECEPTACLE, LEAD FREE
