M80-5401442

Active

Harwin Inc.

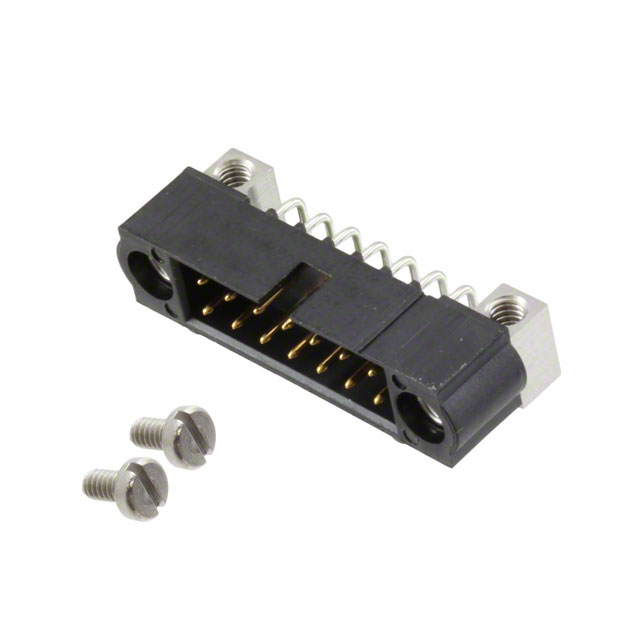

CONN HEADER R/A 14POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet M80-0110001 +2

M80-5401442

Active

Harwin Inc.

CONN HEADER R/A 14POS 2MM

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5401442

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	0.218 in
Insulation Height	5.55 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-540 Series

Part	Mounting Type	Features	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Insulation Material	Insulation Height	Insulation Height	Contact Type	Current Rating (Amps)	Material Flammability Rating	Connector Type	Contact Finish - Mating	Number of Positions	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Harwin Inc. M80-5403422	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin-Lead	Phosphor Bronze	3 µm	118.1 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.218 in	5.55 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	34	Shrouded - 4 Wall	0.079 in	2 mm	2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 V	Circular
Harwin Inc. M80-5401222	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin-Lead	Phosphor Bronze	3 µm	118.1 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.218 in	5.55 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	12	Shrouded - 4 Wall	0.079 in	2 mm	2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 V	Circular
Harwin Inc. M80-5402022	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin-Lead	Phosphor Bronze	3 µm	118.1 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.218 in	5.55 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	20	Shrouded - 4 Wall	0.079 in	2 mm	2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 V	Circular
Harwin Inc. M80-5401422	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin-Lead	Phosphor Bronze	3 µm	118.1 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.218 in	5.55 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	14	Shrouded - 4 Wall	0.079 in	2 mm	2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 V	Circular
Harwin Inc. M80-5401442	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin	Phosphor Bronze	3 µm	118.1 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.218 in	5.55 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	14	Shrouded - 4 Wall	0.079 in	2 mm	2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 V	Circular
Harwin Inc. M80-5404422	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin-Lead	Phosphor Bronze	0.3 µm	12 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.238 in	6.05 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	44	Shrouded - 4 Wall	0.079 in	2 mm	2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 VAC	Circular
Harwin Inc. M80-5402042	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin	Phosphor Bronze	3 µm	118.1 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.218 in	5.55 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	20	Shrouded - 4 Wall	0.079 in	2 mm	2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 V	Circular
Harwin Inc. M80-5402222	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin-Lead	Phosphor Bronze	0.3 µm	12 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.222 "	5.65 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	22 positions	Shrouded - 4 Wall			2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 VAC	Circular	2.54 mm	0.1 in
Harwin Inc. M80-5400642	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin	Phosphor Bronze	3 µm	118.1 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.218 in	5.55 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	6	Shrouded - 4 Wall	0.079 in	2 mm	2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 V	Circular
Harwin Inc. M80-5401842	Through Hole Right Angle	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.118 in	3 mm	All	-55 °C	125 °C	Tin	Phosphor Bronze	3 µm	118.1 µin	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	0.218 in	5.55 mm	Male Pin	2.2 A	UL94 V-0	Header	Gold	18	Shrouded - 4 Wall	0.079 in	2 mm	2	29.5 Áin	0.75 Ám	Black	Solder	0.079 in	2 mm	800 V	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 27.31
		10	$ 21.07
		100	$ 16.53
		500	$ 14.13

Description

General part information

M80-540 Series

Connector Header Through Hole, Right Angle 14 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80, M83 Series Spec Sheet

Datasheet

M80-5401442

Deep-Dive with AI

M80-5401442

Deep-Dive with AI

Technical Specifications

M80-540 Series

Pricing

Description

M80-540 Series

Documents

M80, M83 Series Spec Sheet

M80-0110001

Datasheet

M80-001

M80-540 Series
