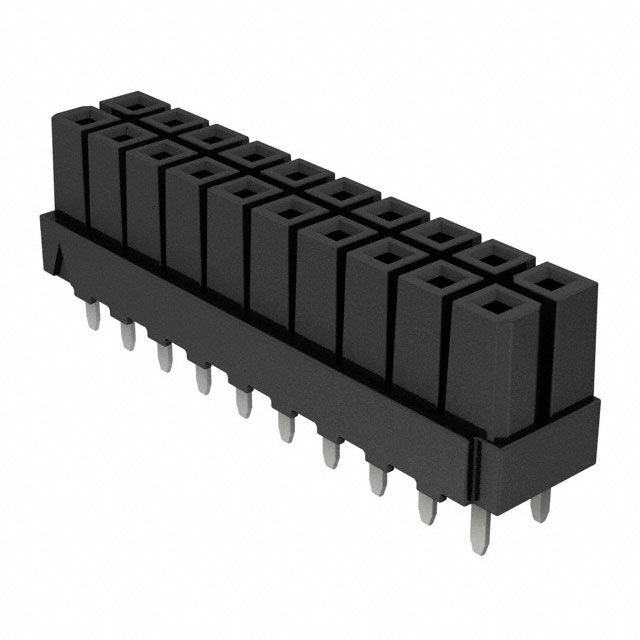

IPBS-110-01-T-D

Active

Samtec Inc.

4.2MM 4.2MM DOUBLE ROW TIN 20P -55℃~+105℃ PHOSPHOR BRONZE STRAIGHT 12.2MM SQUARE HOLE PLUGIN,P=4.2MM FEMALE HEADERS ROHS

Search across all available documentation for this part.

Active

Samtec Inc.

4.2MM 4.2MM DOUBLE ROW TIN 20P -55℃~+105℃ PHOSPHOR BRONZE STRAIGHT 12.2MM SQUARE HOLE PLUGIN,P=4.2MM FEMALE HEADERS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Contact Length - Post	Contact Length - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Features	Insulation Height	Insulation Height	Termination	Connector Type	Contact Type	Mounting Type	Number of Rows	Voltage Rating	Insulation Color	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Insulation Material	Contact Shape
Samtec Inc. IPBS-110-01-T-D-GP	3.94 mm	0.155 "	Push-Pull	4.2 mm	0.165 in	Guide Pin	12.2 mm	0.48 in	Solder	Header	Female Socket	Through Hole	2	400 VAC 565 VDC	Black	Phosphor Bronze	4.2 mm	0.165 in	All	Tin	105 ░C	-55 °C	20	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. IPBS-110-01-T-D	3.94 mm	0.155 "	Push-Pull	4.2 mm	0.165 in		12.2 mm	0.48 in	Solder	Header	Female Socket	Through Hole	2	400 VAC 565 VDC	Black	Phosphor Bronze	4.2 mm	0.165 in	All	Tin	105 ░C	-55 °C	20	Liquid Crystal Polymer (LCP)	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
