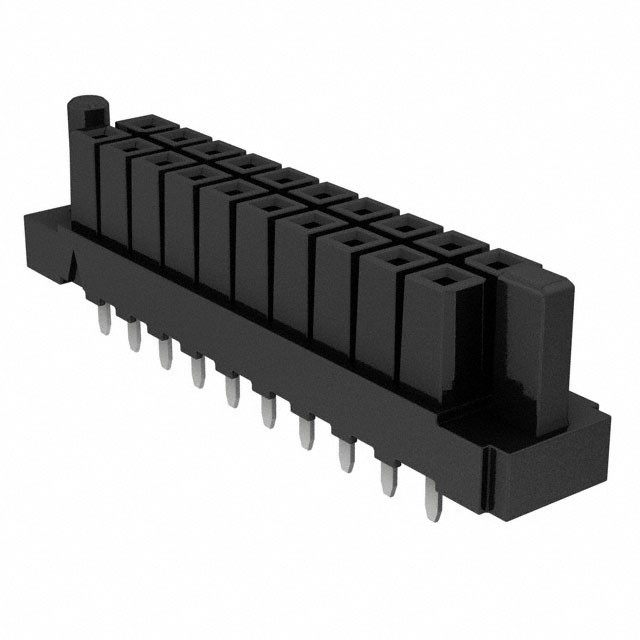

IPBS-110-01-T-D-GP

Active

Samtec Inc.

CONN HDR 20POS 0.165 TIN PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 20POS 0.165 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Length - Post	Contact Length - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Features	Insulation Height	Insulation Height	Termination	Connector Type	Contact Type	Mounting Type	Number of Rows	Voltage Rating	Insulation Color	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Insulation Material	Contact Shape
Samtec Inc. IPBS-110-01-T-D-GP	3.94 mm	0.155 "	Push-Pull	4.2 mm	0.165 in	Guide Pin	12.2 mm	0.48 in	Solder	Header	Female Socket	Through Hole	2	400 VAC 565 VDC	Black	Phosphor Bronze	4.2 mm	0.165 in	All	Tin	105 ░C	-55 °C	20	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. IPBS-110-01-T-D	3.94 mm	0.155 "	Push-Pull	4.2 mm	0.165 in		12.2 mm	0.48 in	Solder	Header	Female Socket	Through Hole	2	400 VAC 565 VDC	Black	Phosphor Bronze	4.2 mm	0.165 in	All	Tin	105 ░C	-55 °C	20	Liquid Crystal Polymer (LCP)	Square
