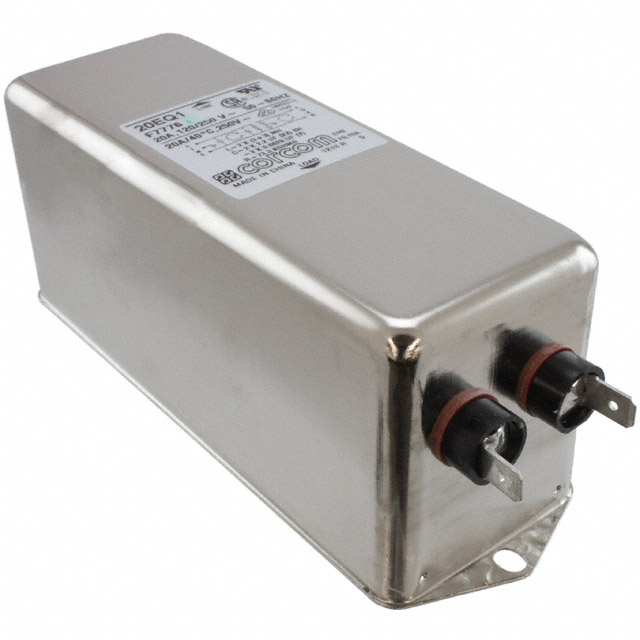

20EQ1

Active

TE Connectivity Corcom Filters

LINE FILTER 250VAC 20A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 250VAC 20A CHASSIS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20EQ1	20E Series

Accomodates a Fuse	-	False
Applications	General Purpose	General Purpose
Approval Agency	VDE, CSA, UR	VDE, CSA, UR, UL
Configuration	Two Stage	Single Stage, Two Stage
Connector Style	-	IEC 320-C20
Connector Type	-	Male Blades, Receptacle
Current	20 A	20 A
Current Rating - Appliance Inlet	-	20 A
Features	-	Front or Rear Side Mount
Filter Type	Single Phase	Single Phase, Filtered (EMI, RFI) - Commercial
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	6 mH	6 - 6.06 mH
Mounting Type	Chassis Mount	Chassis Mount, Panel Mount, Flange
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Panel Cutout Dimensions	-	Variable Size
Termination	-	0.25 in
Termination	-	6.3 mm
Termination	-	Quick Connect
Termination Style	Quick Connect	Threaded Post (8-32), Quick Connect
Voltage - Rated AC	250 V	250 V
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - Appliance Inlet	-	120 VAC

LINE FILTER 250VAC 20A CHASSIS

Part	Inductance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Voltage - Rated AC	Filter Type	Applications	Termination Style	Approval Agency	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Connector Style	Features	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Connector Type	Termination	Termination	Termination	Current Rating - Appliance Inlet	Panel Cutout Dimensions
TE Connectivity Corcom Filters 20ESK6	6.06 mH	Chassis Mount	-10 °C	40 °C	Single Stage	250 V	Single Phase	General Purpose	Threaded Post (8-32)	CSA, UR, VDE	20 A	60 Hz	50 Hz
TE Connectivity Corcom Filters 20EEJ1		Flange, Panel Mount					Filtered (EMI, RFI) - Commercial			CSA, UL, VDE				IEC 320-C20	Front or Rear Side Mount	250 VAC	120 VAC	Male Blades, Receptacle	0.25 in	6.3 mm	Quick Connect	20 A	Variable Size
TE Connectivity Corcom Filters 20EQ1	6 mH	Chassis Mount	-10 °C	40 °C	Two Stage	250 V	Single Phase	General Purpose	Quick Connect	CSA, UR, VDE	20 A	60 Hz	50 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.31
