20EEJ1

Active

TE Connectivity Corcom Filters

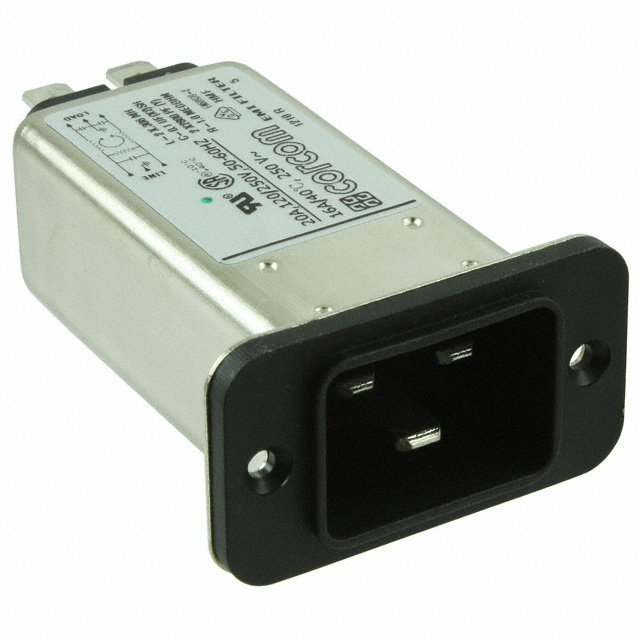

PWR ENT RCPT IEC320-C20 PANEL QC

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C20 PANEL QC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Flange

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	20EEJ1	20E Series

Accomodates a Fuse	False	False
Applications	-	General Purpose
Approval Agency	UL, VDE, CSA	VDE, CSA, UR, UL
Configuration	-	Single Stage, Two Stage
Connector Style	IEC 320-C20	IEC 320-C20
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current	-	20 A
Current Rating - Appliance Inlet	20 A	20 A
Features	Front or Rear Side Mount	Front or Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial	Single Phase, Filtered (EMI, RFI) - Commercial
Frequency - Operating	-	60 Hz
Frequency - Operating	-	50 Hz
Inductance	-	6 - 6.06 mH
Mounting Type	Panel Mount, Flange	Chassis Mount, Panel Mount, Flange
Operating Temperature	-	-10 °C
Operating Temperature	-	40 °C
Panel Cutout Dimensions	Variable Size	Variable Size
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Termination Style	-	Threaded Post (8-32), Quick Connect
Voltage - Rated AC	-	250 V
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC	120 VAC

LINE FILTER 250VAC 20A CHASSIS

Part	Inductance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Voltage - Rated AC	Filter Type	Applications	Termination Style	Approval Agency	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Connector Style	Features	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Connector Type	Termination	Termination	Termination	Current Rating - Appliance Inlet	Panel Cutout Dimensions
TE Connectivity Corcom Filters 20ESK6	6.06 mH	Chassis Mount	-10 °C	40 °C	Single Stage	250 V	Single Phase	General Purpose	Threaded Post (8-32)	CSA, UR, VDE	20 A	60 Hz	50 Hz
TE Connectivity Corcom Filters 20EEJ1		Flange, Panel Mount					Filtered (EMI, RFI) - Commercial			CSA, UL, VDE				IEC 320-C20	Front or Rear Side Mount	250 VAC	120 VAC	Male Blades, Receptacle	0.25 in	6.3 mm	Quick Connect	20 A	Variable Size
TE Connectivity Corcom Filters 20EQ1	6 mH	Chassis Mount	-10 °C	40 °C	Two Stage	250 V	Single Phase	General Purpose	Quick Connect	CSA, UR, VDE	20 A	60 Hz	50 Hz
