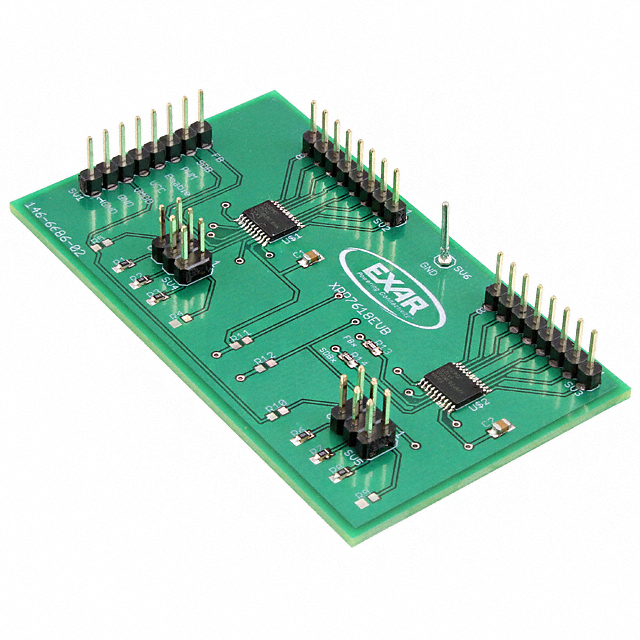

XRP7618EVB

Obsolete

MaxLinear, Inc.

EVAL BOARD FOR XRP7618

Search across all available documentation for this part.

Obsolete

MaxLinear, Inc.

EVAL BOARD FOR XRP7618

Technical Specifications

Parameters and characteristics commom to parts in this series

IC LED DRV LIN PWM 100MA 20TSSOP

Part	Mounting Type	Applications	Voltage - Supply (Min) [Min]	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Number of Outputs	Type	Dimming	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Supplier Device Package	Voltage - Supply (Max)	Current - Output / Channel	Outputs and Type	Features	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Supplied Contents
MaxLinear, Inc. XRP7618IGBTR-F	Surface Mount	Backlight	4.2 V	0.173 in, 4.4 mm	Exposed Pad	20-TSSOP	8	Linear	PWM	85 °C	-40 °C		20-TSSOP-EP	5.5 V	100 mA
MaxLinear, Inc. XRP7618EVB															100 mA	8 Non-Isolated Outputs	Dimmable	5.5 V	4.2 V	XRP7618	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.14

General part information

XRP7618 - 8 Non-Isolated Outputs Dimmable LED Driver Evaluation Board

Technical documentation and resources

No documents available
