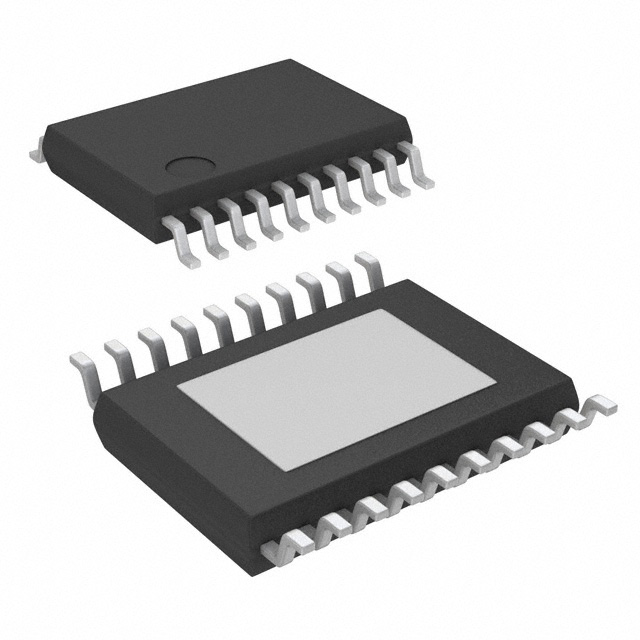

XRP7618IGBTR-F

Obsolete

MaxLinear, Inc.

IC LED DRV LIN PWM 100MA 20TSSOP

Search across all available documentation for this part.

Obsolete

MaxLinear, Inc.

IC LED DRV LIN PWM 100MA 20TSSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

IC LED DRV LIN PWM 100MA 20TSSOP

Part	Mounting Type	Applications	Voltage - Supply (Min) [Min]	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Number of Outputs	Type	Dimming	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Supplier Device Package	Voltage - Supply (Max)	Current - Output / Channel	Outputs and Type	Features	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Supplied Contents
MaxLinear, Inc. XRP7618IGBTR-F	Surface Mount	Backlight	4.2 V	0.173 in, 4.4 mm	Exposed Pad	20-TSSOP	8	Linear	PWM	85 °C	-40 °C		20-TSSOP-EP	5.5 V	100 mA
MaxLinear, Inc. XRP7618EVB															100 mA	8 Non-Isolated Outputs	Dimmable	5.5 V	4.2 V	XRP7618	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 8 Output Linear PWM Dimming 100mA 20-TSSOP-EP

Technical documentation and resources

No documents available
