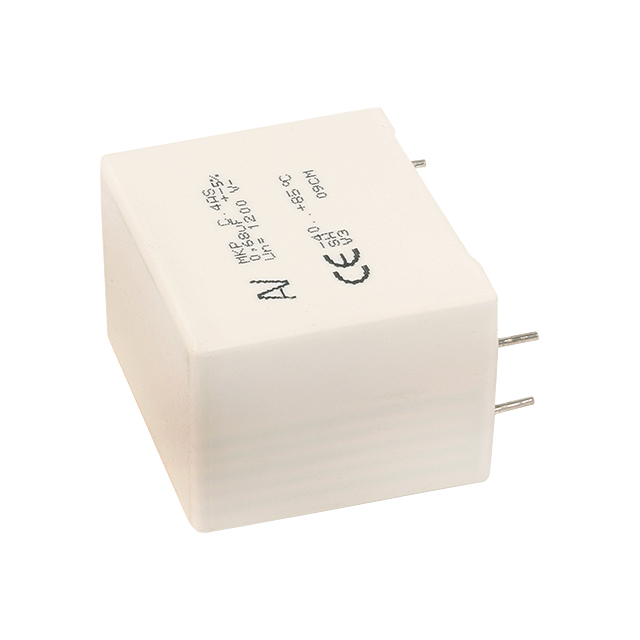

C4ASPBW4100A3FJ

Active

KEMET

CAP FILM 1UF 5% 1.2KVDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1UF 5% 1.2KVDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C4ASPBW4100A3FJ

Applications	Snubber
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3.5 mOhms
Height - Seated (Max) [Max] [z]	1.575 in
Height - Seated (Max) [Max] [z]	40 mm
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial - 4 Leads
Size / Dimension [x]	1.634 "
Size / Dimension [x]	41.5 mm
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.787 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	630 V
Voltage Rating - DC	1200 V
Voltage Rating - DC	1.2 kV

Part	Lead Spacing	Lead Spacing	Mounting Type	Voltage Rating - AC	Applications	Voltage Rating - DC	Voltage Rating - DC	Termination	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance
KEMET C4ASPBW3470A3GJ	27.5 mm	1.083 in	Through Hole	630 V	Snubber	1200 V	1.2 kV	PC Pins	3.7 mOhms	0.866 in	32 mm	22 mm	1.26 in	5 %	85 °C	-40 °C	Radial - 4 Leads	Metallized Polypropylene (PP)	37 mm	1.457 in	0.47 µF
KEMET C4ASPBW4120A3JJ	37.5 mm	1.476 in	Through Hole	630 V	Snubber	1200 V	1.2 kV	PC Pins	2.9 mOhms	1.102 in	42.5 mm	28 mm	1.673 in	5 %	85 °C	-40 °C	Radial - 4 Leads	Metallized Polypropylene (PP)	37 mm	1.457 in	1.2 µF
KEMET C4ASPBW3680A3FJ	37.5 mm	1.476 in	Through Hole	630 V	Snubber	1200 V	1.2 kV	PC Pins	4.9 mOhms	0.787 in	41.5 mm	20 mm	1.634 "	5 %	85 °C	-40 °C	Radial - 4 Leads	Metallized Polypropylene (PP)	40 mm	1.575 in	680 nF
KEMET C4ASPBW4100A3FJ	37.5 mm	1.476 in	Through Hole	630 V	Snubber	1200 V	1.2 kV	PC Pins	3.5 mOhms	0.787 in	41.5 mm	20 mm	1.634 "	5 %	85 °C	-40 °C	Radial - 4 Leads	Metallized Polypropylene (PP)	40 mm	1.575 in	1 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µF Film Capacitor 630V 1200V (1.2kV) Polypropylene (PP), Metallized Radial - 4 Leads
