C4ASPBW3470A3GJ

Active

KEMET

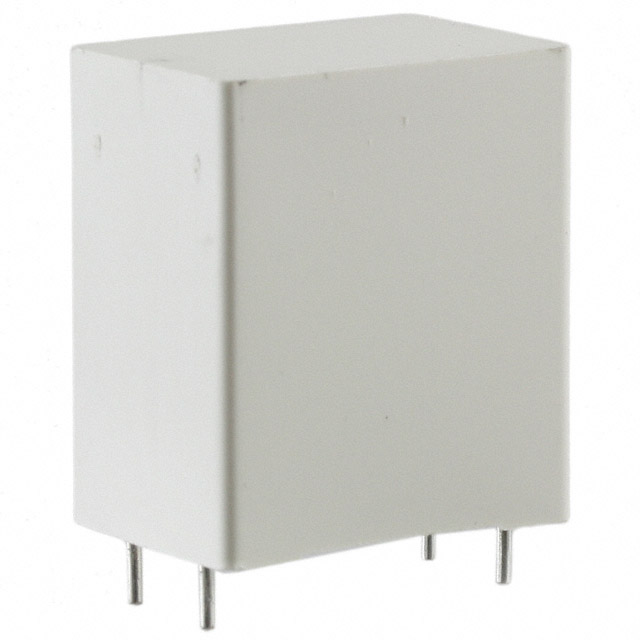

CAP FILM 0.47UF 5% 1.2KVDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.47UF 5% 1.2KVDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	C4ASPBW3470A3GJ

Applications	Snubber
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3.7 mOhms
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial - 4 Leads
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	0.866 in
Size / Dimension [y]	22 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	630 V
Voltage Rating - DC	1200 V
Voltage Rating - DC	1.2 kV

Part	Lead Spacing	Lead Spacing	Mounting Type	Voltage Rating - AC	Applications	Voltage Rating - DC	Voltage Rating - DC	Termination	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance
KEMET C4ASPBW3470A3GJ	27.5 mm	1.083 in	Through Hole	630 V	Snubber	1200 V	1.2 kV	PC Pins	3.7 mOhms	0.866 in	32 mm	22 mm	1.26 in	5 %	85 °C	-40 °C	Radial - 4 Leads	Metallized Polypropylene (PP)	37 mm	1.457 in	0.47 µF
KEMET C4ASPBW4120A3JJ	37.5 mm	1.476 in	Through Hole	630 V	Snubber	1200 V	1.2 kV	PC Pins	2.9 mOhms	1.102 in	42.5 mm	28 mm	1.673 in	5 %	85 °C	-40 °C	Radial - 4 Leads	Metallized Polypropylene (PP)	37 mm	1.457 in	1.2 µF
KEMET C4ASPBW3680A3FJ	37.5 mm	1.476 in	Through Hole	630 V	Snubber	1200 V	1.2 kV	PC Pins	4.9 mOhms	0.787 in	41.5 mm	20 mm	1.634 "	5 %	85 °C	-40 °C	Radial - 4 Leads	Metallized Polypropylene (PP)	40 mm	1.575 in	680 nF
KEMET C4ASPBW4100A3FJ	37.5 mm	1.476 in	Through Hole	630 V	Snubber	1200 V	1.2 kV	PC Pins	3.5 mOhms	0.787 in	41.5 mm	20 mm	1.634 "	5 %	85 °C	-40 °C	Radial - 4 Leads	Metallized Polypropylene (PP)	40 mm	1.575 in	1 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.47 µF Film Capacitor 630V 1200V (1.2kV) Polypropylene (PP), Metallized Radial - 4 Leads
