LPAM-40-01.5-L-08-2-K-TR - LPAM-40-01.5-S-08-2-K-TR

LPAM-40-01.5-L-08-2-K-TR

Active
Samtec Inc.

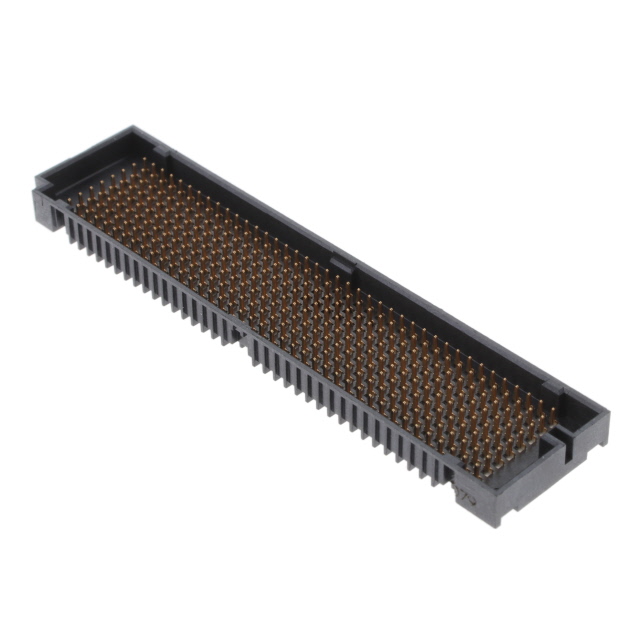

MEZZANINE CONNECTOR, ARRAY, MALE, 1.27 MM, 8 ROWS, 320 CONTACTS, SURFACE MOUNT, COPPER ALLOY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLPAF Series Other Related Documents 03.050" LP Array™ High-Speed High-Density Low Profile Open-Pin-Field Array, Terminal+5
LPAM-40-01.5-L-08-2-K-TR - LPAM-40-01.5-S-08-2-K-TR

LPAM-40-01.5-L-08-2-K-TR

Active
Samtec Inc.

MEZZANINE CONNECTOR, ARRAY, MALE, 1.27 MM, 8 ROWS, 320 CONTACTS, SURFACE MOUNT, COPPER ALLOY

Deep-Dive with AI

DocumentsLPAF Series Other Related Documents 03.050" LP Array™ High-Speed High-Density Low Profile Open-Pin-Field Array, Terminal+5

Technical Specifications

Parameters and characteristics for this part

SpecificationLPAM-40-01.5-L-08-2-K-TR
Connector TypeMale Pins, Array
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesPick and Place, Board Guide
Height Above Board0.165 "
Height Above Board4.2 mm
Mated Stacking Heights4.5 mm, 5 mm
Mounting TypeSurface Mount
Number of Positions320
Number of Rows8
Pitch [x]0.05 in
Pitch [x]1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 30.48
10$ 28.86
25$ 27.77
50$ 27.10
100$ 22.11
Digi-Reel® 1$ 30.48
10$ 28.86
25$ 27.77
50$ 27.10
100$ 22.11
Tape & Reel (TR) 300$ 20.45
600$ 19.68
NewarkEach (Supplied on Cut Tape) 1$ 30.61
10$ 27.69
25$ 26.56
50$ 24.78
100$ 23.97
250$ 22.67
500$ 22.02

Description

General part information

LPAM-40 Series

320 Position Connector Array, Male Pins Surface Mount Gold
