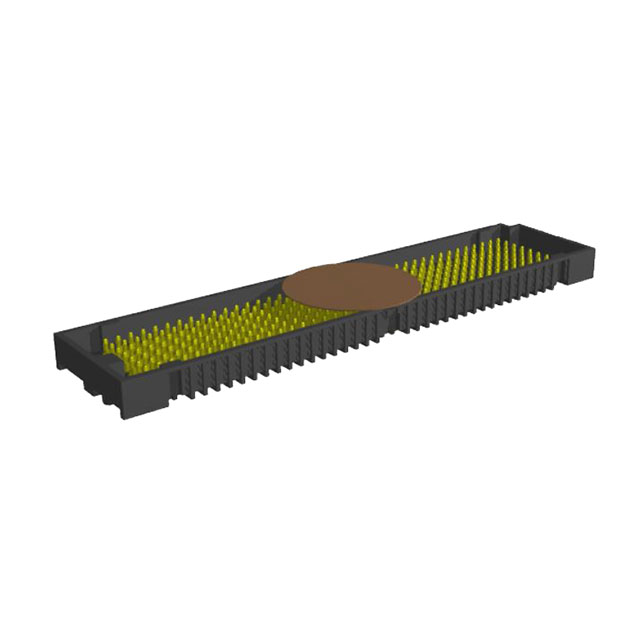

LPAM-40-01.0-L-08-2-K-TR
ActiveSamtec Inc.
CONN ARRAY PLUG 320POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LPAM-40-01.0-L-08-2-K-TR
ActiveSamtec Inc.
CONN ARRAY PLUG 320POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LPAM-40-01.0-L-08-2-K-TR |
|---|---|
| Connector Type | Male Pins, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place, Board Guide |
| Height Above Board [z] | 3.68 mm |
| Height Above Board [z] | 0.145 in |
| Mated Stacking Heights | 4 mm, 4.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 320 |
| Number of Rows | 8 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 29.85 | |
| 10 | $ 28.26 | |||
| 25 | $ 27.20 | |||
| 50 | $ 26.53 | |||
| 100 | $ 21.65 | |||
| Tape & Reel (TR) | 300 | $ 20.02 | ||
Description
General part information
LPAM-40 Series
320 Position Connector Array, Male Pins Surface Mount Gold
