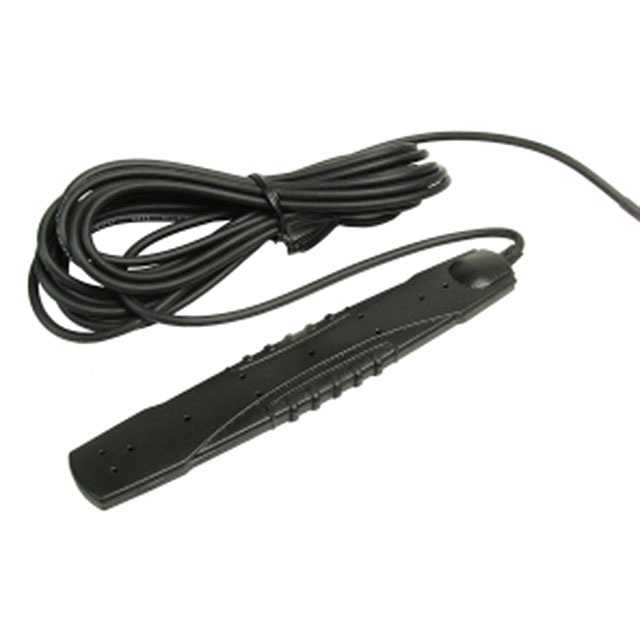

ALPHA41/2M/SMAM/RP/S/19

Active

Siretta Ltd

4G/LTE FLAT BLADE ADHESIVE ANTEN

Search across all available documentation for this part.

Active

Siretta Ltd

4G/LTE FLAT BLADE ADHESIVE ANTEN

Technical Specifications

Parameters and characteristics for this part

Specification	ALPHA41/2M/SMAM/RP/S/19

Antenna Type	Flat Bar
Applications	GSM, Zigbee™, Wi-Fi, LTE, Bluetooth, UMTS
Features	Cable - 2m
Frequency (Center/Band)	2.2 GHz, 830 MHz
Frequency Group [Max]	1 GHz, 3 GHz
Frequency Group [Min]	300 MHz, 2 GHz
Frequency Range [Max]	2.7 GHz, 960 MHz
Frequency Range [Min]	1.7 GHz, 700 MHz
Gain	0 dBi, 2 dBic
Height (Max)	7 mm
Height (Max) [Max]	0.276 in
Mounting Type	Adhesive
Number of Bands	2
Power - Max [Max]	50 W
RF Family/Standard	Cellular, Bluetooth, 802.15.4, WiFi
Termination	RP-SMA Male
VSWR	3.6

Part	RF Family/Standard	Antenna Type	Frequency Range [Min]	Frequency Range [Max]	VSWR	Height (Max) [Max]	Height (Max)	Features	Features	Mounting Type	Applications	Frequency (Center/Band)	Gain	Number of Bands	Frequency Group [Max]	Frequency Group [Min]	Power - Max [Max]	Termination
Siretta Ltd ALPHA41/3M/SMAM/S/S/19	802.15.4 Bluetooth WiFi	Blade	1.7 GHz 700 MHz	2.7 GHz 960 MHz	1.9	0.276 in	7 mm	Cable	3 m	Adhesive	Bluetooth Wi-Fi Zigbee™	2.2 GHz 830 MHz	1 dBi 3 dBi	2	1 GHz	300 MHz
Siretta Ltd ALPHA41/2M/SMAM/RP/S/19	802.15.4 Bluetooth Cellular WiFi	Flat Bar	1.7 GHz 700 MHz	2.7 GHz 960 MHz	3.6	0.276 in	7 mm	Cable - 2m		Adhesive	Bluetooth GSM LTE UMTS Wi-Fi Zigbee™	2.2 GHz 830 MHz	0 dBi 2 dBic	2	1 GHz 3 GHz	2 GHz 300 MHz	50 W	RP-SMA Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, GSM, LTE, UMTS, Wi-Fi, Zigbee™ Flat Bar RP-SMA Male Adhesive
