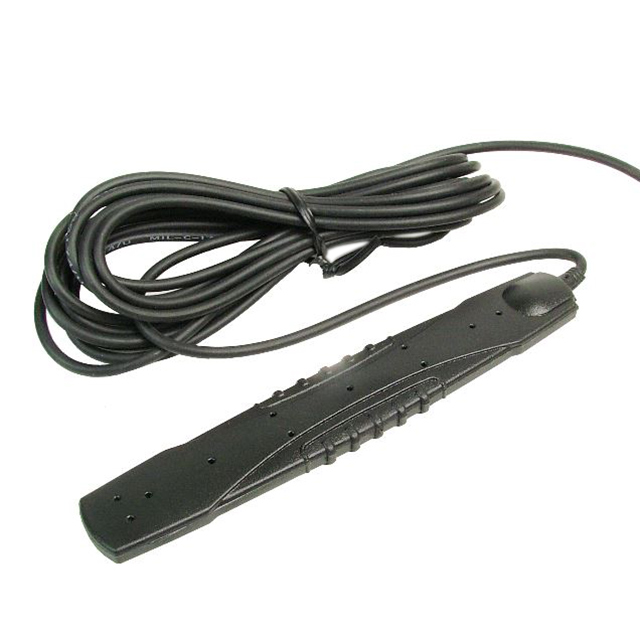

ALPHA41/3M/SMAM/S/S/19
ActiveSiretta Ltd
4G/LTE FLAT BLADE ADHESIVE ANTEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ALPHA41/3M/SMAM/S/S/19
ActiveSiretta Ltd
4G/LTE FLAT BLADE ADHESIVE ANTEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ALPHA41/3M/SMAM/S/S/19 |
|---|---|
| Antenna Type | Blade |
| Applications | Zigbee™, Bluetooth, Wi-Fi |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 2.2 GHz, 830 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 2.7 GHz, 960 MHz |
| Frequency Range [Min] | 1.7 GHz, 700 MHz |
| Gain | 3 dBi, 1 dBi |
| Height (Max) | 7 mm |
| Height (Max) [Max] | 0.276 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| VSWR | 1.9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.60 | |
| 10 | $ 10.66 | |||
| 25 | $ 10.22 | |||
| 100 | $ 9.72 | |||
Description
General part information
ALPHA41 Series
RF ANTENNA Bluetooth, Wi-Fi, Zigbee™ Blade SMA Male Adhesive
