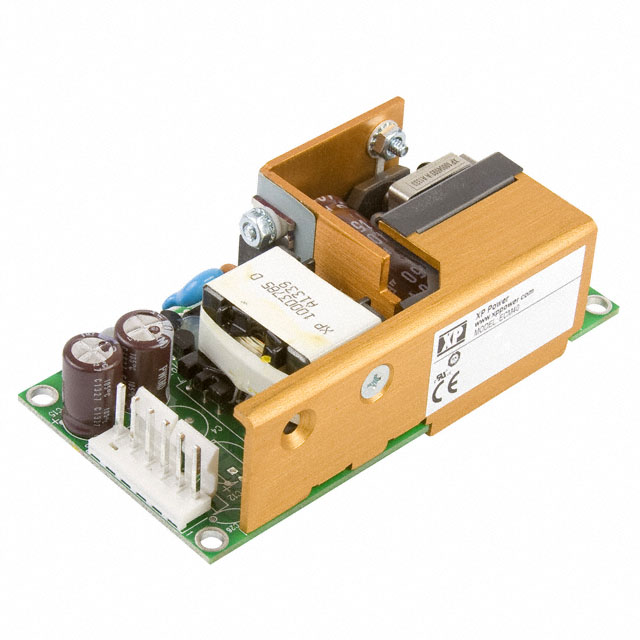

ECM40UT32

Active

XP POWER

AC/DC CONVERTER 5V 24V -12V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECM40UT32

Active

XP POWER

AC/DC CONVERTER 5V 24V -12V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECM40UT32

Applications	ITE (Commercial), Medical
Approval Agency	cUL
Current - Output 1	6 A
Current - Output 2	1 A
Current - Output 3	500 mA
Efficiency	85 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	40 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V
Voltage - Output 2	24 V
Voltage - Output 3	-12 V

ECM40 Series

Part	Standard Number	Number of Outputs	Power (Watts)	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Features	Current - Output 1	Voltage - Isolation	Efficiency	Accessory Type	For Use With/Related Products	Current - Output 2	Current - Output 3	Voltage - Output 3	Voltage - Output 2
XP POWER ECM40US12	62368-1	1	40 W	12 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	CB CE	Adjustable Output Universal Input	3.5 A	4000 V	80 %
XP POWER ECM40US09	62368-1	1	40 W	9 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	CB CE	Adjustable Output Universal Input	4.4 A	4000 V	80 %
XP POWER ECM40/60 COVER																							Cover Assembly	ECM Series Power Supplies
XP POWER ECM40US07	62368-1	1	40 W	7 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	cUL	Adjustable Output Universal Input	5.7 A	4000 V	85 %
XP POWER ECM40/60 CONKIT																							Connector Kit	ECM Series Power Supplies
XP POWER ECM40UT32	62368-1	3	40 W	5 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	cUL	Adjustable Output Universal Input	6 A	4000 V	85 %			1 A	500 mA	-12 V	24 V
XP POWER ECM40US15	62368-1	1	40 W	15 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	CB CE	Adjustable Output Universal Input	2.7 A	4000 V	80 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.27
		5	$ 57.49
		10	$ 55.71
		25	$ 53.34
		100	$ 49.79

Description

General part information

ECM40 Series

Open Frame AC DC Converters 3 Output 5V 24V -12V 90 ~ 264 VAC Input
