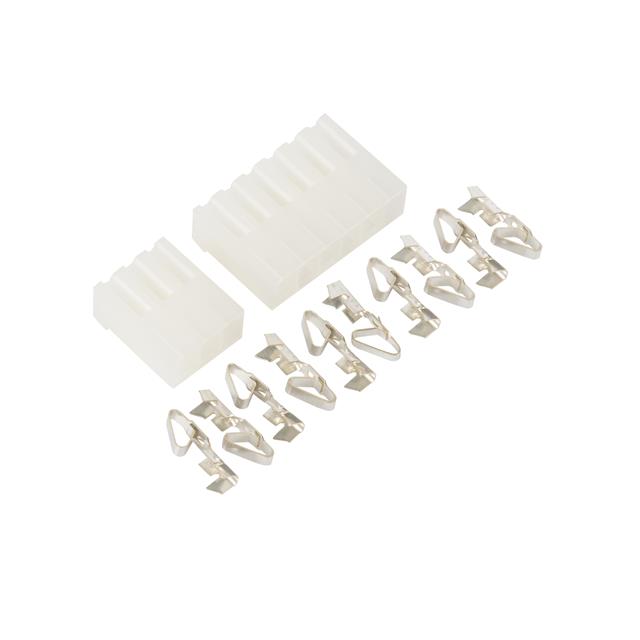

ECM40/60 CONKIT

Active

XP POWER

CONN KIT FOR ECM POWER SUPP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECM40/60 CONKIT

Active

XP POWER

CONN KIT FOR ECM POWER SUPP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECM40/60 CONKIT

Accessory Type	Connector Kit
For Use With/Related Products	ECM Series Power Supplies

ECM40 Series

Part	Standard Number	Number of Outputs	Power (Watts)	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Features	Current - Output 1	Voltage - Isolation	Efficiency	Accessory Type	For Use With/Related Products	Current - Output 2	Current - Output 3	Voltage - Output 3	Voltage - Output 2
XP POWER ECM40US12	62368-1	1	40 W	12 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	CB CE	Adjustable Output Universal Input	3.5 A	4000 V	80 %
XP POWER ECM40US09	62368-1	1	40 W	9 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	CB CE	Adjustable Output Universal Input	4.4 A	4000 V	80 %
XP POWER ECM40/60 COVER																							Cover Assembly	ECM Series Power Supplies
XP POWER ECM40US07	62368-1	1	40 W	7 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	cUL	Adjustable Output Universal Input	5.7 A	4000 V	85 %
XP POWER ECM40/60 CONKIT																							Connector Kit	ECM Series Power Supplies
XP POWER ECM40UT32	62368-1	3	40 W	5 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	cUL	Adjustable Output Universal Input	6 A	4000 V	85 %			1 A	500 mA	-12 V	24 V
XP POWER ECM40US15	62368-1	1	40 W	15 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial) Medical	Open Frame	90 VAC	264 VAC	Chassis Mount	70 °C	0 °C	CB CE	Adjustable Output Universal Input	2.7 A	4000 V	80 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.41
		5	$ 7.19
		10	$ 6.97
		25	$ 6.67
		100	$ 6.22

Description

General part information

ECM40 Series

CONN KIT FOR ECM POWER SUPP
