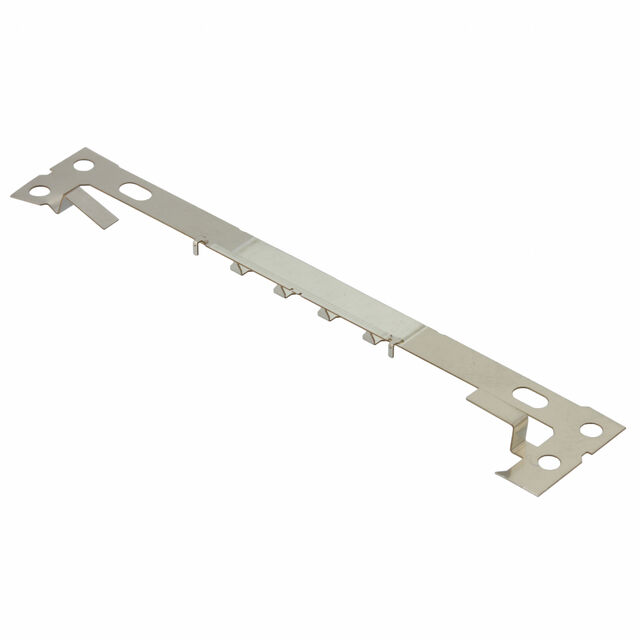

FI-JW50C-BGB-S-100

Obsolete

JAE Electronics

CONN BASE 0.3MM 50POS FINE COAX

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN BASE 0.3MM 50POS FINE COAX

Technical Specifications

Parameters and characteristics for this part

Specification	FI-JW50C-BGB-S-100

Accessory Type	Base Ground Bar
For Use With/Related Products	FI-JW Series
Number of Positions	50

Part	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Style	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Insulation Color	Contact Finish - Post	Termination	Mated Stacking Heights	Contact Type	Connector Type	Number of Rows	Number of Positions	Insulation Height	Insulation Height	Material Flammability Rating	Voltage Rating	Accessory Type	For Use With/Related Products
JAE Electronics FI-JW50S-VF16-100	Copper Alloy	0.099 µm	3.9 µin	Grounding Pins Pick and Place Solder Retention	Plastic	85 °C	-40 °C	Flash	0.25 A	0.3 mm	0.012 "	Friction Lock	Board to Cable/Wire	All	Gold	Surface Mount	Black	Gold	Solder	1.65 mm	Non-Gendered	Receptacle	1	50	0.063 in	1.6 mm	UL94 V-0	50 V
JAE Electronics FI-JW50C-BGB-S-100																								50					Base Ground Bar	FI-JW Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Base Ground Bar For FI-JW Series
