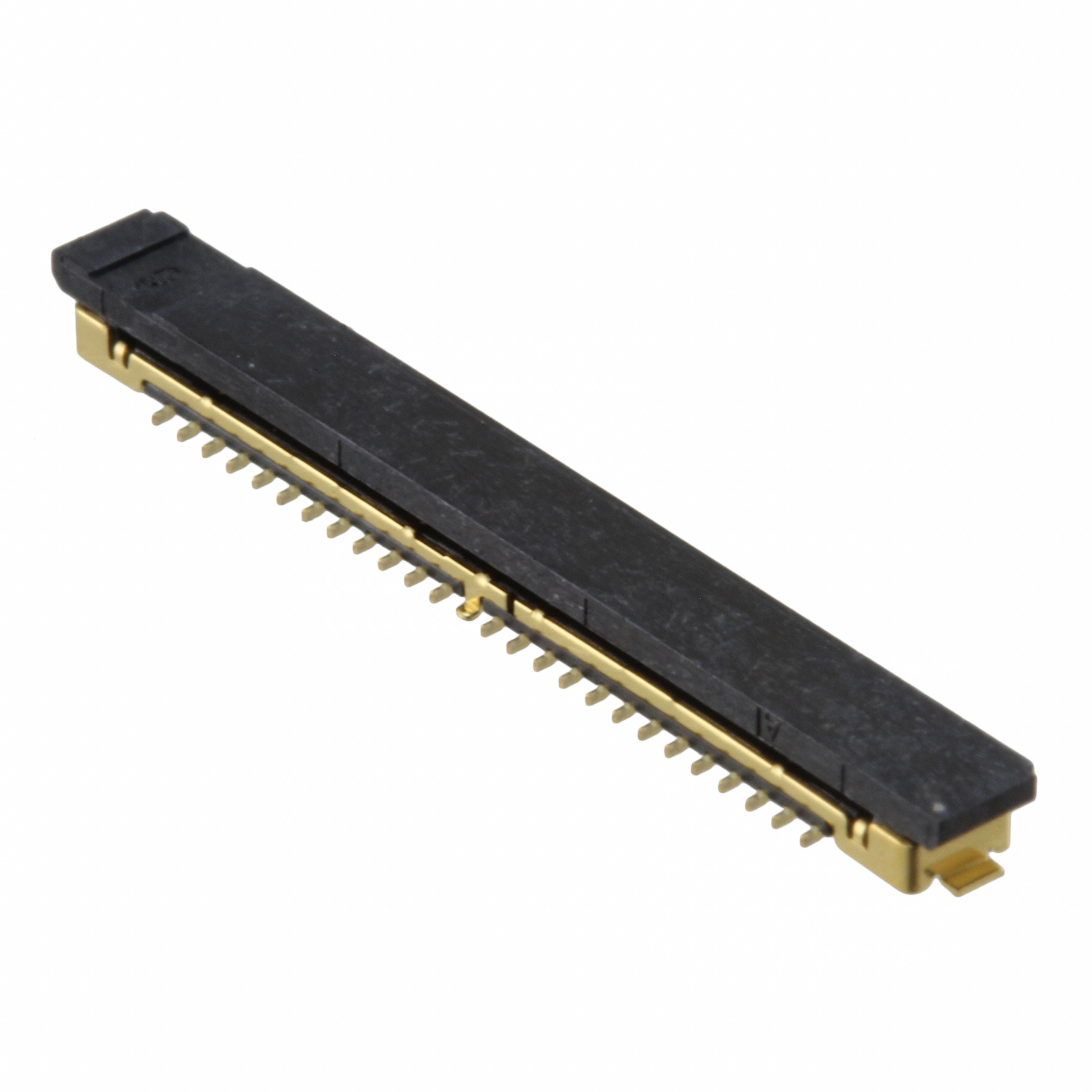

FI-JW50S-VF16-100

Obsolete

JAE Electronics

CONN RCPT 50POS 0.012 GOLD SMD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 50POS 0.012 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FI-JW50S-VF16-100

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Current Rating (Amps)	0.25 A
Fastening Type	Friction Lock
Features	Solder Retention, Pick and Place, Grounding Pins
Insulation Color	Black
Insulation Height	0.063 in
Insulation Height	1.6 mm
Insulation Material	Plastic
Mated Stacking Heights	1.65 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.3 mm
Pitch - Mating	0.012 "
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Style	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Insulation Color	Contact Finish - Post	Termination	Mated Stacking Heights	Contact Type	Connector Type	Number of Rows	Number of Positions	Insulation Height	Insulation Height	Material Flammability Rating	Voltage Rating	Accessory Type	For Use With/Related Products
JAE Electronics FI-JW50S-VF16-100	Copper Alloy	0.099 µm	3.9 µin	Grounding Pins Pick and Place Solder Retention	Plastic	85 °C	-40 °C	Flash	0.25 A	0.3 mm	0.012 "	Friction Lock	Board to Cable/Wire	All	Gold	Surface Mount	Black	Gold	Solder	1.65 mm	Non-Gendered	Receptacle	1	50	0.063 in	1.6 mm	UL94 V-0	50 V
JAE Electronics FI-JW50C-BGB-S-100																								50					Base Ground Bar	FI-JW Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Receptacle Connector 0.012" (0.30mm) Surface Mount Gold
