11_BNC-50-3-16/133_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, BNC PLUG, 50 OHM, 4GHZ ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_BNC-50-3-16/133_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, BNC PLUG, 50 OHM, 4GHZ ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.28
		10	$ 17.17
		25	$ 15.54
		50	$ 14.44
		100	$ 13.44
		250	$ 12.27
		500	$ 11.48
Newark	Each	1	$ 14.16
		10	$ 13.09
		25	$ 12.17
		50	$ 11.40
		100	$ 10.76
		250	$ 10.12

Description

General part information

11_BNC-50 Series

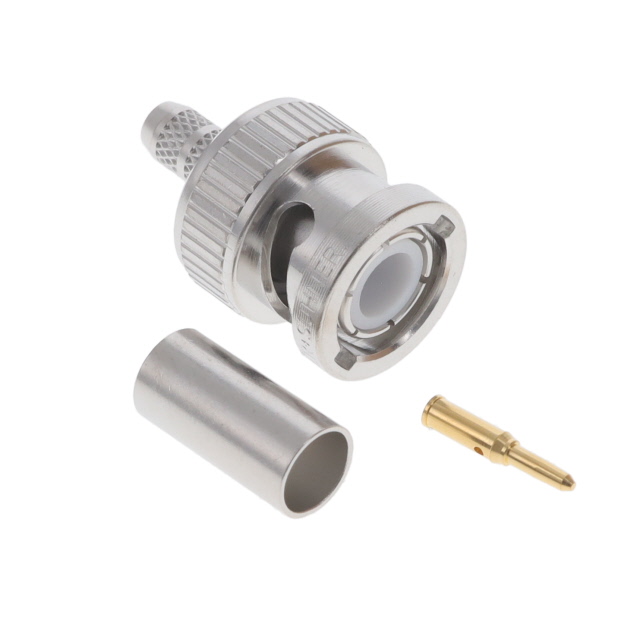

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

Datasheet

Specification	11_BNC-50-3-16/133_NE	11_BNC-50 Series

	-	-
Body Finish	White Bronze	White Bronze
Body Material	Brass	Brass
Cable Group	RG-223	RG-223, RG-174, 188, 316, RG-178, RG-58, RG-213, RG-214, RD-316, RG-59, RG-400, 225, LMR-240
Cable Group	-	142 - 400
Center Contact Material	Brass	Brass, Bronze, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	500 V	500 V

Part

Body Finish

Cable Group

Connector Style

Mating Cycles

Center Contact Plating

Center Contact Material

Impedance

Voltage Rating

Contact Termination

Fastening Type

Mounting Type

Dielectric Material

Frequency - Max [Max]

Number of Ports

Body Material

Connector Type

Shield Termination

Housing Color

Operating Temperature [Min]

Operating Temperature [Max]

Cable Group

Huber+Suhner, Inc.

11_BNC-50-3-16/133_NH

White Bronze

RG-223

BNC

500

Gold

Brass

50 Ohms

500 V

Solder

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Crimp

Silver

-65 ░C

165 °C

Huber+Suhner, Inc.

11_BNC-50-3-36/133_NE

White Bronze

BNC

500

Gold

Brass

50 Ohms

500 V

Crimp

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Crimp

Silver

-65 ░C

165 °C

Huber+Suhner, Inc.

11_BNC-50-2-13/133_NE

White Bronze

188, 316, RG-174

BNC

500

Gold

Brass, Bronze

50 Ohms

500 V

Crimp

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Crimp

Silver

-65 ░C

165 °C

Huber+Suhner, Inc.

11_BNC-50-3-16/133_NE

White Bronze

RG-223

BNC

500

Gold

Brass

50 Ohms

500 V

Solder

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Crimp

Silver

-65 ░C

165 °C

Huber+Suhner, Inc.

11_BNC-50-1-5/133_NH

White Bronze

RG-178

BNC

500

Gold

Brass, Bronze

50 Ohms

500 V

Crimp

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Crimp

Silver

-65 ░C

165 °C

196

Huber+Suhner, Inc.

11_BNC-50-3-1/133_NE

White Bronze

RG-58

BNC

500

Gold

Brass

50 Ohms

500 V

Solder

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Clamp

Silver

-65 ░C

165 °C

142, 223, 400

Huber+Suhner, Inc.

11_BNC-50-7-1/133_NE

White Bronze

RG-213

BNC

500

Gold

Brass

50 Ohms

500 V

Solder

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Clamp

Silver

-65 ░C

165 °C

Huber+Suhner, Inc.

11_BNC-50-7-6/133_NE

White Bronze

RG-214

BNC

500

Gold

Brass

50 Ohms

500 V

Crimp

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Crimp

Silver

-65 ░C

165 °C

Huber+Suhner, Inc.

11_BNC-50-2-16/133_NE

White Bronze

BNC

500

Gold

Brass, Bronze

50 Ohms

500 V

Crimp

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Crimp

Silver

-65 ░C

165 °C

Huber+Suhner, Inc.

11_BNC-50-2-13/133_NH

White Bronze

188, 316, RG-174

BNC

500

Gold

Brass, Bronze

50 Ohms

500 V

Crimp

Bayonet Lock

Free Hanging (In-Line)

Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)

4 GHz

Brass

Male Pin, Plug

Crimp

Silver

-65 ░C

165 °C

Part	Body Finish	Cable Group	Connector Style	Mating Cycles	Center Contact Plating	Center Contact Material	Impedance	Voltage Rating	Contact Termination	Fastening Type	Mounting Type	Dielectric Material	Frequency - Max [Max]	Number of Ports	Body Material	Connector Type	Shield Termination	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group
Huber+Suhner, Inc. 11_BNC-50-3-16/133_NH	White Bronze	RG-223	BNC	500	Gold	Brass	50 Ohms	500 V	Solder	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-3-36/133_NE	White Bronze		BNC	500	Gold	Brass	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-2-13/133_NE	White Bronze	188, 316, RG-174	BNC	500	Gold	Brass, Bronze	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-3-16/133_NE	White Bronze	RG-223	BNC	500	Gold	Brass	50 Ohms	500 V	Solder	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-1-5/133_NH	White Bronze	RG-178	BNC	500	Gold	Brass, Bronze	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C	196
Huber+Suhner, Inc. 11_BNC-50-3-1/133_NE	White Bronze	RG-58	BNC	500	Gold	Brass	50 Ohms	500 V	Solder	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Clamp	Silver	-65 ░C	165 °C	142, 223, 400
Huber+Suhner, Inc. 11_BNC-50-7-1/133_NE	White Bronze	RG-213	BNC	500	Gold	Brass	50 Ohms	500 V	Solder	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Clamp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-7-6/133_NE	White Bronze	RG-214	BNC	500	Gold	Brass	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-2-16/133_NE	White Bronze		BNC	500	Gold	Brass, Bronze	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-2-13/133_NH	White Bronze	188, 316, RG-174	BNC	500	Gold	Brass, Bronze	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
