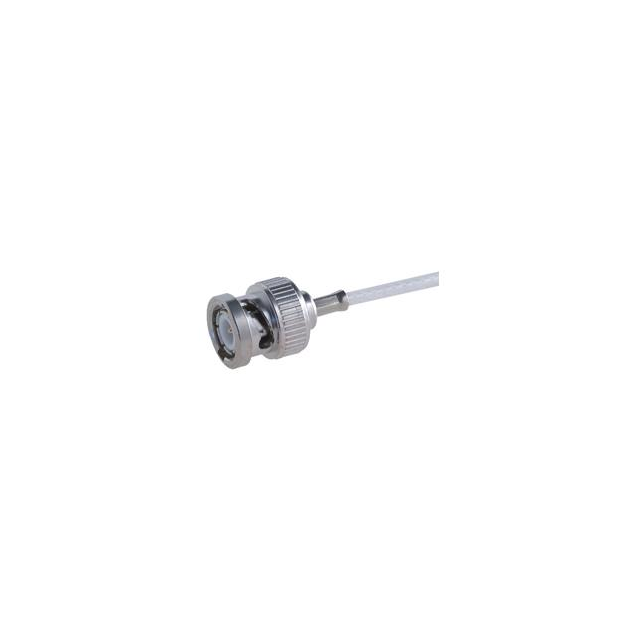

11_BNC-50-2-13/133_NE

Active

Huber+Suhner, Inc.

11_BNC-50-2-13/133_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.79
		10	$ 22.58
		100	$ 20.21

Description

General part information

11_BNC-50 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11_BNC-50-2-13/133_NE	11_BNC-50 Series

	-	-
Body Finish	White Bronze	White Bronze
Body Material	Brass	Brass
Cable Group	RG-174, 188, 316	RG-223, RG-174, 188, 316, RG-178, RG-58, RG-213, RG-214, RD-316, RG-59, RG-400, 225, LMR-240
Cable Group	-	142 - 400
Center Contact Material	Brass, Bronze	Brass, Bronze, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	500 V	500 V

11_BNC-50 Series

11_BNC-50-3-16/133_NH

Part	Body Finish	Cable Group	Connector Style	Mating Cycles	Center Contact Plating	Center Contact Material	Impedance	Voltage Rating	Contact Termination	Fastening Type	Mounting Type	Dielectric Material	Frequency - Max [Max]	Number of Ports	Body Material	Connector Type	Shield Termination	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group
Huber+Suhner, Inc. 11_BNC-50-3-16/133_NH	White Bronze	RG-223	BNC	500	Gold	Brass	50 Ohms	500 V	Solder	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-3-36/133_NE	White Bronze		BNC	500	Gold	Brass	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-2-13/133_NE	White Bronze	188, 316, RG-174	BNC	500	Gold	Brass, Bronze	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-3-16/133_NE	White Bronze	RG-223	BNC	500	Gold	Brass	50 Ohms	500 V	Solder	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-1-5/133_NH	White Bronze	RG-178	BNC	500	Gold	Brass, Bronze	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C	196
Huber+Suhner, Inc. 11_BNC-50-3-1/133_NE	White Bronze	RG-58	BNC	500	Gold	Brass	50 Ohms	500 V	Solder	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Clamp	Silver	-65 ░C	165 °C	142, 223, 400
Huber+Suhner, Inc. 11_BNC-50-7-1/133_NE	White Bronze	RG-213	BNC	500	Gold	Brass	50 Ohms	500 V	Solder	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Clamp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-7-6/133_NE	White Bronze	RG-214	BNC	500	Gold	Brass	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-2-16/133_NE	White Bronze		BNC	500	Gold	Brass, Bronze	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
Huber+Suhner, Inc. 11_BNC-50-2-13/133_NH	White Bronze	188, 316, RG-174	BNC	500	Gold	Brass, Bronze	50 Ohms	500 V	Crimp	Bayonet Lock	Free Hanging (In-Line)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	1	Brass	Male Pin, Plug	Crimp	Silver	-65 ░C	165 °C
