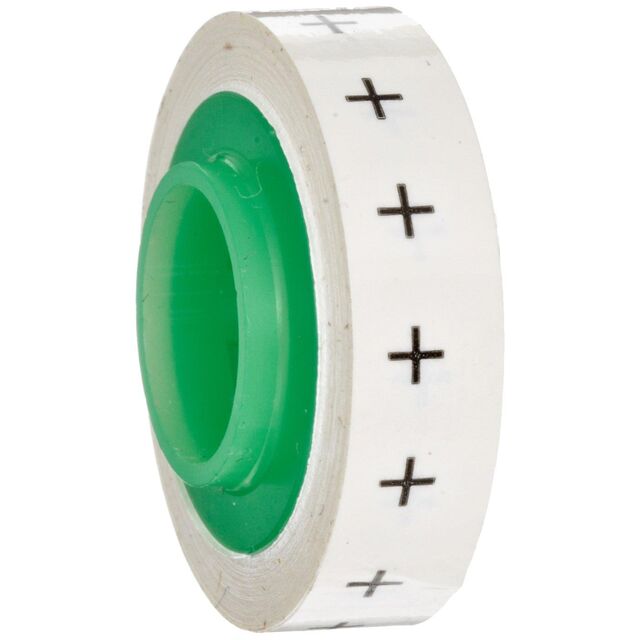

SDR-+(PLUS)
Active3M
WIRE MARKER POS LEGEND 1=1ROLL
Deep-Dive with AI
Search across all available documentation for this part.
SDR-+(PLUS)
Active3M
WIRE MARKER POS LEGEND 1=1ROLL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SDR-+(PLUS) | SDR Series |
|---|---|---|
| Cable Diameter [diameter] | Cut to Desired Diameter | Cut to Desired Diameter |
| Color | White | Green, Black, White, Brown, Violet, Gray, Yellow |
| Legend | - | Blank, B, K, T, W, L3, G, 3, T1, X, L, L1, 4, 7, 2 |
| Legend | - | 19 - 59 |
| Legend | - | 10 - 50 |
| Legend | - | 6 |
| Legend | - | True |
| Material | Polyester | Polyester |
| Operating Temperature [Max] | 121 °C | 121 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shelf Life | 24 Months | 24 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Size [x] | 0.22 in | 0.22 in |
| Size [x] | 5.5 mm | 5.5 mm |
| Size [y] | 2.4 m | 2.4 m |
| Size [y] | 96 in | 96 in |
| Type | Wire Marker, Tape | Wire Marker, Tape |
SDR Series
WIRE MARKER, SCOTCHCODE™ TAPE, COLOUR CODED, 5.46MM X 2.44M, PET (POLYESTER), GREEN
| Part | Size [y] | Size [x] | Size [x] | Size [y] | Shelf Life Start | Type | Shelf Life | Operating Temperature [Min] | Operating Temperature [Max] | Legend | Cable Diameter [diameter] | Color | Material | Legend [Max] | Legend [Min] | Legend | Legend |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M SDR-GN | 2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | Blank | Cut to Desired Diameter | Green | Polyester | ||||
3M SDR-BK | 2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | Blank | Cut to Desired Diameter | Black | Polyester | ||||
3M SDR-B | 2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | B | Cut to Desired Diameter | White | Polyester | ||||
3M SDR-BN | 2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | Blank | Cut to Desired Diameter | Brown | Polyester | ||||
3M SDR-K | 2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | K | Cut to Desired Diameter | White | Polyester | ||||
2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | Cut to Desired Diameter | White | Polyester | ||||||
3M SDR-T | 2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | T | Cut to Desired Diameter | White | Polyester | ||||
3M SDR-W | 2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | W | Cut to Desired Diameter | White | Polyester | ||||
3M SDR-L3 | 2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | L3 | Cut to Desired Diameter | White | Polyester | ||||
3M SDR-G | 2.4 m | 0.22 in | 5.5 mm | 96 in | Date of Manufacture | Wire Marker, Tape | 24 Months | -40 °C | 121 °C | G | Cut to Desired Diameter | White | Polyester |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 6.93 | |
Description
General part information
SDR Series
Wire Marker, Tape 0.22" W x 96.00" L (5.5mm x 2.4m) White Polyester
