Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX4596DCKRG4 | MAX4596 Series |
|---|---|---|
| -3db Bandwidth | 300 MHz | 300 MHz |
| Channel Capacitance (CS(off), CD(off)) [custom] | 8 pF | 8 pF |
| Channel Capacitance (CS(off), CD(off)) [custom] | 8 pF | 8 pF |
| Charge Injection | 2 pC | 2 pC |
| Current - Leakage (IS(off)) (Max) [Max] | 500 pA | 500 pA |
| Mounting Type | Surface Mount | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) [Max] | 10 Ohms | 10 Ohms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

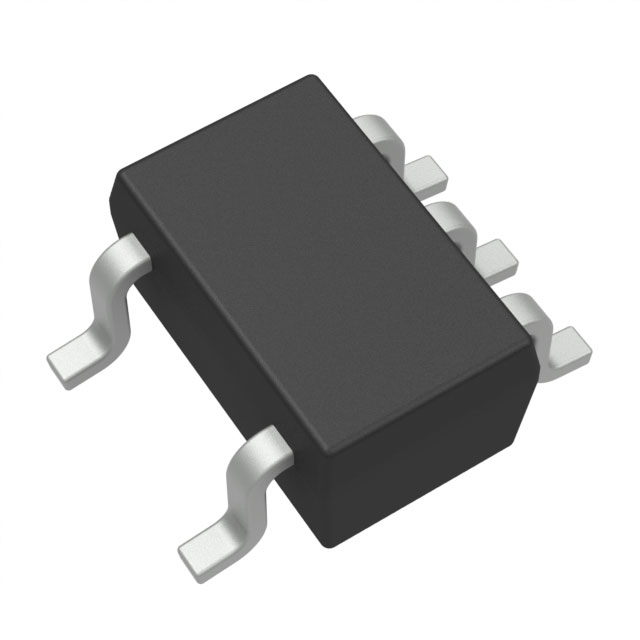

| Package / Case | 5-TSSOP, SOT-353, SC-70-5 | 5-TSSOP, SOT-353, SC-70-5, SOT-753, SC-74A |
| Supplier Device Package | SC-70-5 | SC-70-5, SOT-23-5 |
| Switch Circuit | SPST - NO | SPST - NO |
| Switch Time (Ton, Toff) (Max) [custom] | 40 ns | 40 ns |
| Switch Time (Ton, Toff) (Max) [custom] | 35 ns | 35 ns |
| Voltage - Supply, Single (V+) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply, Single (V+) [Min] | 2.4 V | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
MAX4596 Series
10-pA, 5-V, 1:1 (SPST), 1-channel analog switch (active high) with flow-through pinout
| Part | Multiplexer/Demultiplexer Circuit | Switch Time (Ton, Toff) (Max) [custom] | Switch Time (Ton, Toff) (Max) [custom] | Switch Circuit | -3db Bandwidth | Voltage - Supply, Single (V+) [Max] | Voltage - Supply, Single (V+) [Min] | Charge Injection | Number of Circuits | Channel Capacitance (CS(off), CD(off)) [custom] | Channel Capacitance (CS(off), CD(off)) [custom] | On-State Resistance (Max) [Max] | Supplier Device Package | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Leakage (IS(off)) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments MAX4596DCKRThe MAX4596 is a single-pole single-throw (SPST) analog switch that is designed to operate from 2 V to 5 V. This device can handle both digital and analog signals, and signals up to V+(peak) can be transmitted in either direction.
The MAX4596 is a single-pole single-throw (SPST) analog switch that is designed to operate from 2 V to 5 V. This device can handle both digital and analog signals, and signals up to V+(peak) can be transmitted in either direction. | 1:1 | 40 ns | 35 ns | SPST - NO | 300 MHz | 5.5 V | 2.4 V | 2 pC | 1 | 8 pF | 8 pF | 10 Ohms | SC-70-5 | Surface Mount | 5-TSSOP, SC-70-5, SOT-353 | 85 °C | -40 °C | 500 pA |
Texas Instruments MAX4596DBVRThe MAX4596 is a single-pole single-throw (SPST) analog switch that is designed to operate from 2 V to 5 V. This device can handle both digital and analog signals, and signals up to V+(peak) can be transmitted in either direction.
The MAX4596 is a single-pole single-throw (SPST) analog switch that is designed to operate from 2 V to 5 V. This device can handle both digital and analog signals, and signals up to V+(peak) can be transmitted in either direction. | 1:1 | 40 ns | 35 ns | SPST - NO | 300 MHz | 5.5 V | 2.4 V | 2 pC | 1 | 8 pF | 8 pF | 10 Ohms | SOT-23-5 | Surface Mount | SC-74A, SOT-753 | 85 °C | -40 °C | 500 pA |
1:1 | 40 ns | 35 ns | SPST - NO | 300 MHz | 5.5 V | 2.4 V | 2 pC | 1 | 8 pF | 8 pF | 10 Ohms | SC-70-5 | Surface Mount | 5-TSSOP, SC-70-5, SOT-353 | 85 °C | -40 °C | 500 pA |
Description
General part information
MAX4596 Series
The MAX4596 is a single-pole single-throw (SPST) analog switch that is designed to operate from 2 V to 5 V. This device can handle both digital and analog signals, and signals up to V+(peak) can be transmitted in either direction.
The MAX4596 is a single-pole single-throw (SPST) analog switch that is designed to operate from 2 V to 5 V. This device can handle both digital and analog signals, and signals up to V+(peak) can be transmitted in either direction.
