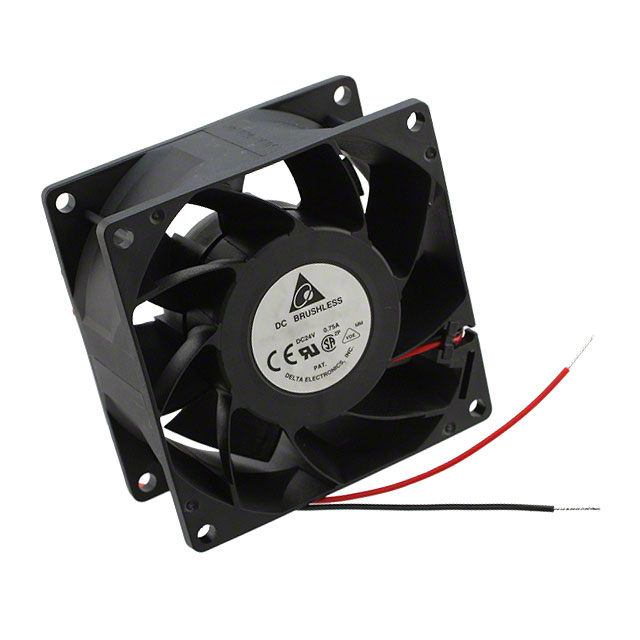

FFB0824EHE

Active

Delta Electronics

FAN AXIAL 80X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Datasheet +2

FFB0824EHE

Active

Delta Electronics

FAN AXIAL 80X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB0824EHE

Air Flow	80.2 CFM
Air Flow	2.25 mł/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	52.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	12 W
RPM	5700 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	170.1 g
Weight	0.375 lb
Width [y]	38 mm

FFB0824 Series

Part	Material - Blade	Fan Type	Termination	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Material - Frame	Features	Noise	Voltage - Rated	Air Flow	Air Flow	RPM	Current Rating (Amps)	Power (Watts)
Delta Electronics FFB0824VHE-R00	Plastic	Tubeaxial	3 Wire Leads	70000 Hrs	80 mm	80 mm	38 mm	0.424 in H2O	105.6 Pa	27.6 VDC	14 VDC	Ball	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	170.1 g	0.375 lb	Plastic	Locked Rotor Sensor	44.5 dB	24 VDC	1.6 mł/min	57.2 CFM	4200 RPM	0.24 A
Delta Electronics FFB0824HHE	Plastic	Tubeaxial	2 Wire Leads	70000 Hrs	80 mm	80 mm	38 mm	0.281 in H2O	70 Pa	27.6 VDC	14 VDC	Ball	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	170.1 g	0.375 lb	Plastic		39 dB(A)	24 VDC	1.27 mł/min	45.2 CFM	3400 RPM	150 mA	3.6 W
Delta Electronics FFB0824SHE-F00	Plastic	Tubeaxial	3 Wire Leads	70000 Hrs	80 mm	80 mm	38 mm	0.591 in H2O	147.2 Pa	27.6 VDC	14 VDC	Ball	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	170.1 g	0.375 lb	Plastic	Locked Rotor Protection Speed Sensor (Tach)	48.5 dB(A)	24 VDC	1.92 m³/min	68.5 CFM	4900 RPM	0.34 A	8.16 W
Delta Electronics FFB0824VHE	Plastic	Tubeaxial	2 Wire Leads	70000 Hrs	80 mm	80 mm	38 mm	0.424 in H2O	105.6 Pa	27.6 VDC	14 VDC	Ball	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	170.1 g	0.375 lb	Plastic		44.5 dB	24 VDC	1.6 mł/min	57.2 CFM	4200 RPM	0.24 A
Delta Electronics FFB0824EHE-F00	Plastic	Tubeaxial	3 Wire Leads	70000 Hrs	80 mm	80 mm	38 mm			26.4 VDC	14 VDC	Ball	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	170.1 g	0.375 lb	Plastic	Locked Rotor Protection Speed Sensor (Tach)	52.5 dB(A)	24 VDC	2.25 mł/min	80.2 CFM	5700 RPM	0.5 A	12 W
Delta Electronics FFB0824EHE	Plastic	Tubeaxial	2 Wire Leads	70000 Hrs	80 mm	80 mm	38 mm			26.4 VDC	14 VDC	Ball	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	170.1 g	0.375 lb	Plastic		52.5 dB(A)	24 VDC	2.25 mł/min	80.2 CFM	5700 RPM	0.5 A	12 W
Delta Electronics FFB0824HHE-F00	Plastic	Tubeaxial	3 Wire Leads	70000 Hrs	80 mm	80 mm	38 mm	0.281 in H2O	70 Pa	27.6 VDC	14 VDC	Ball	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	170.1 g	0.375 lb	Plastic	Locked Rotor Protection Speed Sensor (Tach)	39 dB(A)	24 VDC	1.27 mł/min	45.2 CFM	3400 RPM	150 mA	3.6 W
Delta Electronics FFB0824EHE-R00	Plastic	Tubeaxial	3 Wire Leads	70000 Hrs	80 mm	80 mm	38 mm			26.4 VDC	14 VDC	Ball	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	170.1 g	0.375 lb	Plastic	Locked Rotor Sensor	52.5 dB(A)	24 VDC	2.25 mł/min	80.2 CFM	5700 RPM	0.5 A	12 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.89
		10	$ 18.03
		25	$ 16.31
		90	$ 15.02
		180	$ 13.48
		270	$ 12.45
		540	$ 11.59

Description

General part information

FFB0824 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 80.2 CFM (2.25m³/min) 2 Wire Leads
