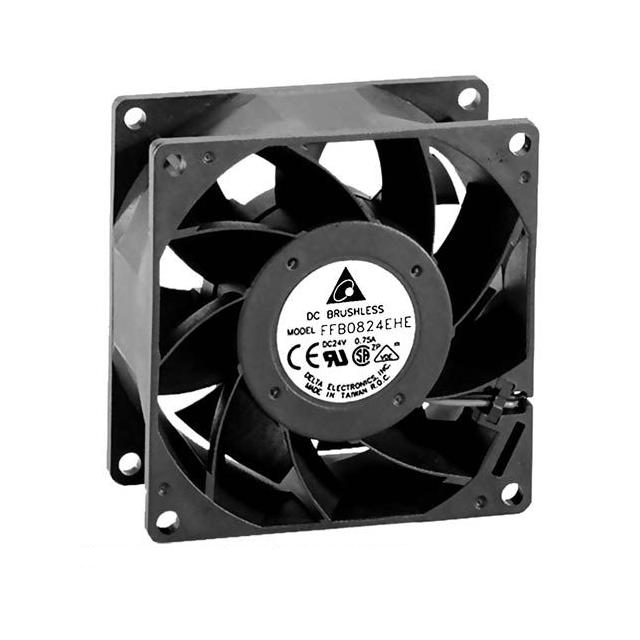

FFB0824EHE-R00

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 24V 14V TO 26.4V 80.16CFM 52.5DB 80 X 80 X 38MM SENSOR

FFB0824EHE-R00

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 24V 14V TO 26.4V 80.16CFM 52.5DB 80 X 80 X 38MM SENSOR

Description Specifications Series Pricing CAD Documents

Description

General part information

FFB0824 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 80.2 CFM (2.25m³/min) 3 Wire Leads

Technical Specifications

Parameters and characteristics for this part

Specification	FFB0824EHE-R00

Air Flow	80.2 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	0.5 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	52.5 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	12 W
RPM	5700 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.812 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	26.4 VDC
Voltage Range (Min)	14 VDC
Weight	6 oz
Width	38 mm

FFB0824 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Weight	RPM	Noise	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Fan Type	Features	Width	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Bearing Type	Power (Watts)	Air Flow	Static Pressure	Approval Agency	Material - Blade	Current Rating	Voltage Range (Max)	Voltage Range (Min)	Material - Frame	Lifetime	Ingress Protection Description	Ingress Protection IP Rating
Delta Electronics FFB0824VHE-R00	158 °F	14 °F	6 oz	4200 RPM	44.5 dB	80 mm	Square	80 mm	Tubeaxial	Locked Rotor Sensor	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	Ball	5.76 W	57.2 CFM	0.424 in H2O	CE CSA UL VDE	Plastic	0.24 A	27.6 VDC	14 VDC	Plastic	70000 Hrs
Delta Electronics FFB0824HHE	158 °F	14 °F	6 oz	3400 RPM	39 dB	80 mm	Square	80 mm	Tubeaxial	Locked Rotor Protection	38 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	Ball	3.6 W	45.2 CFM	0.281 in H2O	CE CSA UL VDE	Plastic	150 mA	27.6 VDC	14 VDC	Plastic	70000 Hrs
Delta Electronics FFB0824SHE-F00	158 °F	14 °F	6 oz	4900 RPM	48.5 dB	80 mm	Square	80 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	Ball	8.16 W	68.5 CFM	0.591 in H2O	CE CSA UL VDE	Plastic	0.34 A	27.6 VDC	14 VDC	Plastic	70000 Hrs
Delta Electronics FFB0824VHE	158 °F	14 °F	6 oz	4200 RPM	44.5 dB	80 mm	Square	80 mm	Tubeaxial	Locked Rotor Protection	38 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	Ball	5.76 W	57.2 CFM	0.424 in H2O	CE CSA UL VDE	Plastic	0.24 A	27.6 VDC	14 VDC	Plastic	70000 Hrs
Delta Electronics FFB0824EHE-F00	158 °F	14 °F	6 oz	5700 RPM	52.5 dB	80 mm	Square	80 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	Ball	12 W	80.2 CFM	0.812 in H2O	CE CSA UL VDE	Plastic	0.5 A	26.4 VDC	14 VDC	Plastic	70000 Hrs
Delta Electronics FFB0824EHE	158 °F	14 °F	6 oz	5700 RPM	52.5 dB	80 mm	Square	80 mm	Tubeaxial	Locked Rotor Protection	38 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	Ball	12 W	80.2 CFM	0.812 in H2O	CE CSA UL VDE	Plastic	0.5 A	26.4 VDC	14 VDC	Plastic	70000 Hrs
Delta Electronics FFB0824HHE-F00	158 °F	14 °F	6 oz	3400 RPM	39 dB	80 mm	Square	80 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	Ball	3.6 W	45.2 CFM	0.281 in H2O	CE CSA UL VDE	Plastic	150 mA	27.6 VDC	14 VDC	Plastic	70000 Hrs
Delta Electronics FFB0824SH-TZW1	158 °F	14 °F	0.254 lb	4500 RPM	48.6 dB	80 mm	Square	80 mm	Tubeaxial	Locked Rotor Protection	1 in	2 leads	Wire Leads	2 Wire Leads	24 VAC	Ball	5.76 W	67 CFM	0.392 in H2O	CE CSA UL VDE	Plastic	0.24 A	26.4 VDC	20.4 VDC	Plastic	70000 Hrs	Dust Protected Water Resistant	IP55
Delta Electronics FFB0824EHE-R00	158 °F	14 °F	6 oz	5700 RPM	52.5 dB	80 mm	Square	80 mm	Tubeaxial	Locked Rotor Sensor	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	Ball	12 W	80.2 CFM	0.812 in H2O	CE CSA UL VDE	Plastic	0.5 A	26.4 VDC	14 VDC	Plastic	70000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

FFB0824EHE-R00 | Datasheet
