M39029/30-221
ActiveAmphenol Aerospace Operations

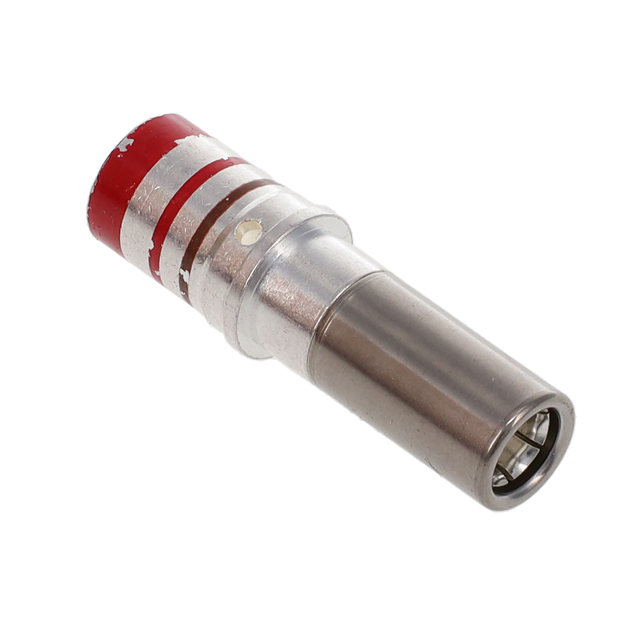

CONTACT SOCKET 8-10AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/30-221
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 8-10AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/30-221 |
|---|---|
| Contact Finish | Silver |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Copper Alloy |
| Contact Size | 4 4 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Power, Machined |
| Wire Gauge or Range - AWG [Max] | 10 AWG |
| Wire Gauge or Range - AWG [Min] | 8 AWG |
| Wire Gauge or Range - mm² [Max] | 21 mm² |
| Wire Gauge or Range - mm² [Min] | 13 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.30 | |
| 10 | $ 17.18 | |||
| 25 | $ 15.24 | |||
| 50 | $ 14.45 | |||
| 100 | $ 13.46 | |||
| 250 | $ 12.28 | |||
| 500 | $ 11.49 | |||
| 500 | $ 5.54 | |||
Description
General part information
M39029/30 Series
Socket Contact 8-10 AWG Size 4 Crimp Silver
