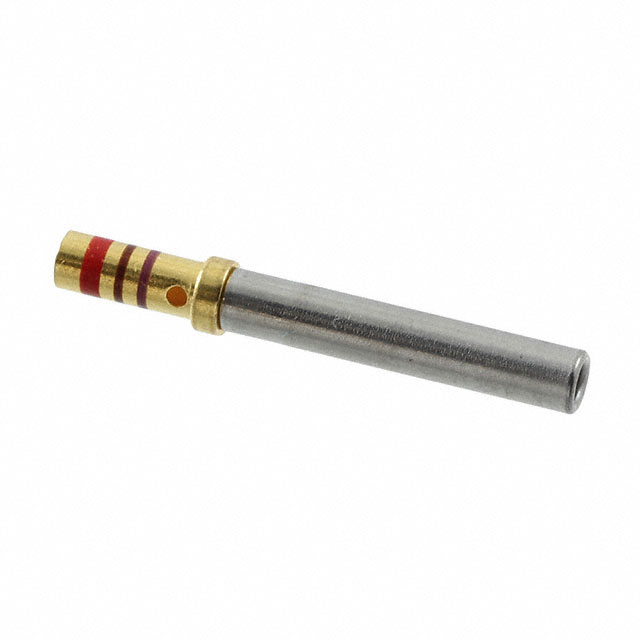

M39029/30-217
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 16-20AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/30-217
ActiveAmphenol Aerospace Operations
CONTACT SOCKET 16-20AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/30-217 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 16S |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Power, Machined |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
| Wire Gauge or Range - mm˛ [Max] | 1.4 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.5 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.75 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.68 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.61 | |||
| 1500 | $ 0.60 | |||
| Bulk | 1 | $ 1.76 | ||
| 10 | $ 1.34 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.04 | |||
| 250 | $ 0.95 | |||
Description
General part information
M39029/30 Series
Socket Contact 16-20 AWG Size 16S Crimp Gold
