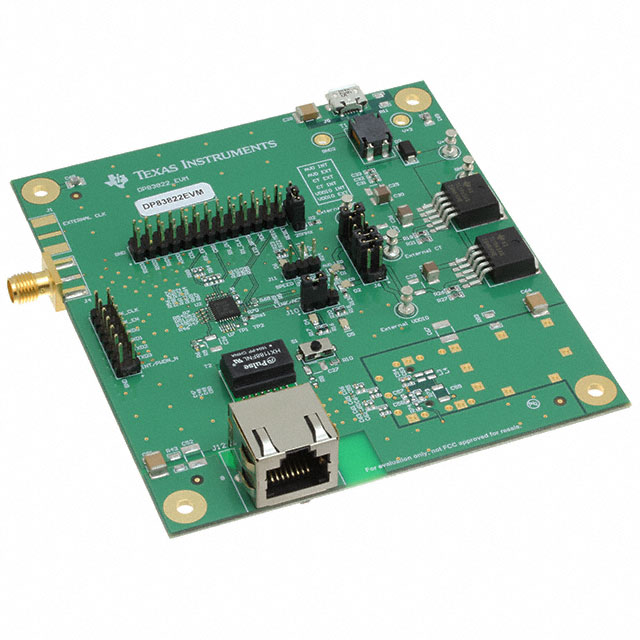

DP83822EVM

Active

Texas Instruments

DP83822 10/100 MBPS ETHERNET PHY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DP83822EVM

Active

Texas Instruments

DP83822 10/100 MBPS ETHERNET PHY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DP83822EVM	DP83822 Series

Applications	-	Ethernet
Contents	Board(s)	Board(s)
Function	Ethernet	Ethernet
Interface	-	MII, RMII
Mounting Type	-	Surface Mount
Package / Case	-	32-VFQFN Exposed Pad
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	32-VQFN (5x5)
Type	Interface	Interface
Utilized IC / Part	DP83822	DP83822
Voltage - Supply	-	3.45 V
Voltage - Supply	-	1.71 V

DP83822 Series

Extended temperature, robust low-power 10/100-Mbps Ethernet PHY transceiver with 16-kV ESD

Part	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Supplier Device Package	Mounting Type	Interface	Supplied Contents	Type	Utilized IC / Part	Contents	Function
Texas Instruments DP83822HFRHBT	Ethernet	3.45 V	1.71 V	32-VFQFN Exposed Pad	32-VQFN (5x5)	Surface Mount	MII, RMII
Texas Instruments DP83822IRHBR	Ethernet	3.45 V	1.71 V	32-VFQFN Exposed Pad	32-VQFN (5x5)	Surface Mount	MII, RMII
Texas Instruments DP83822EVM								Board(s)	Interface	DP83822	Board(s)	Ethernet
Texas Instruments DP83822IRHBT	Ethernet	3.45 V	1.71 V	32-VFQFN Exposed Pad	32-VQFN (5x5)	Surface Mount	MII, RMII
Texas Instruments DP83822HRHBR	Ethernet	3.45 V	1.71 V	32-VFQFN Exposed Pad	32-VQFN (5x5)	Surface Mount	MII, RMII
Texas Instruments DP83822HRHBT	Ethernet	3.45 V	1.71 V	32-VFQFN Exposed Pad	32-VQFN (5x5)	Surface Mount	MII, RMII
Texas Instruments DP83822IFRHBR	Ethernet	3.45 V	1.71 V	32-VFQFN Exposed Pad	32-VQFN (5x5)	Surface Mount	MII, RMII
Texas Instruments DP83822IFRHBT	Ethernet	3.45 V	1.71 V	32-VFQFN Exposed Pad	32-VQFN (5x5)	Surface Mount	MII, RMII

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 238.80

Description

General part information

DP83822 Series

Designed for harsh industrial environments, the DP83822 is an ultra-robust, low-power single-port 10/100 Mbps Ethernet PHY. The DP83822 provides all physical layer functions needed to transmit and receive data over standard twisted-pair cables, or connect to an external fiber optic transceiver. Additionally, the DP83822 provides flexibility to connect to a MAC through a standard MII, RMII, or RGMII interface.

The DP83822 offers integrated cable diagnostic tools, built-in self-test, and loopback capabilities for ease of use. The device supports multiple industrial fieldbuses with fast link-down detection as well as Auto-MDIX in forced modes.

The DP83822 offers an remarkable and robust approach for reducing power consumption through EEE, WoL and other programmable energy savings modes.
