104479-5
ActiveTE Connectivity AMP Connectors

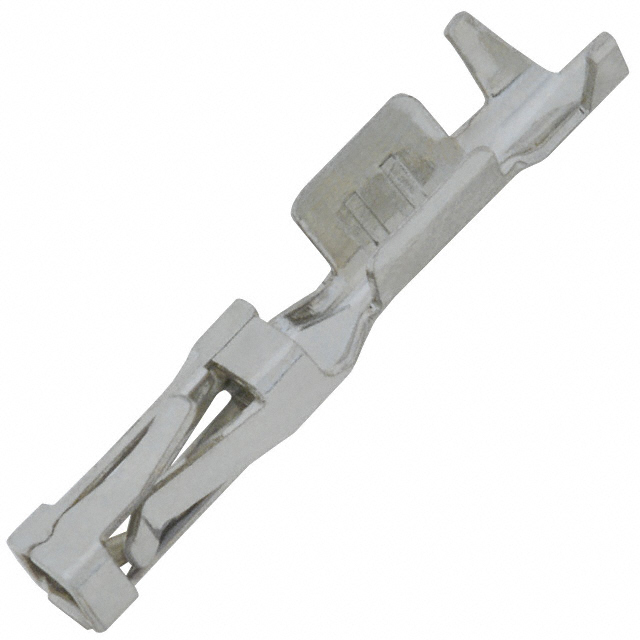

CONN SOCKET 20-24AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
104479-5
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20-24AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104479-5 | 104479 Series |
|---|---|---|
| Contact Finish | Tin-Lead | Gold, Tin, Tin-Lead |
| Contact Finish Thickness | 2.54 µm | 0.38 - 2.54 Ám |
| Contact Finish Thickness | 100 µin | 15 - 100 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 20 AWG | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50000 | $ 0.16 | |
104479 Series
CONN SOCKET 20-24AWG CRIMP GOLD
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104479-7 | Gold | 0.76 Ám | 30 Áin | Crimp | Socket | 20 AWG | 24 AWG |
TE Connectivity AMP Connectors 104479-8 | Tin | 2.54 µm | 100 µin | Crimp | Socket | 20 AWG | 24 AWG |
TE Connectivity AMP Connectors 104479-6 | Gold | 0.38 µm | 15 µin | Crimp | Socket | 20 AWG | 24 AWG |
TE Connectivity AMP Connectors 104479-2 | Tin-Lead | 2.54 µm | 100 µin | Crimp | Socket | 20 AWG | 24 AWG |
TE Connectivity AMP Connectors 104479-5 | Tin-Lead | 2.54 µm | 100 µin | Crimp | Socket | 20 AWG | 24 AWG |
Description
General part information
104479 Series
Socket Contact Tin-Lead 20-24 AWG Crimp
Documents
Technical documentation and resources
No documents available
