104479-7
ActiveTE Connectivity AMP Connectors

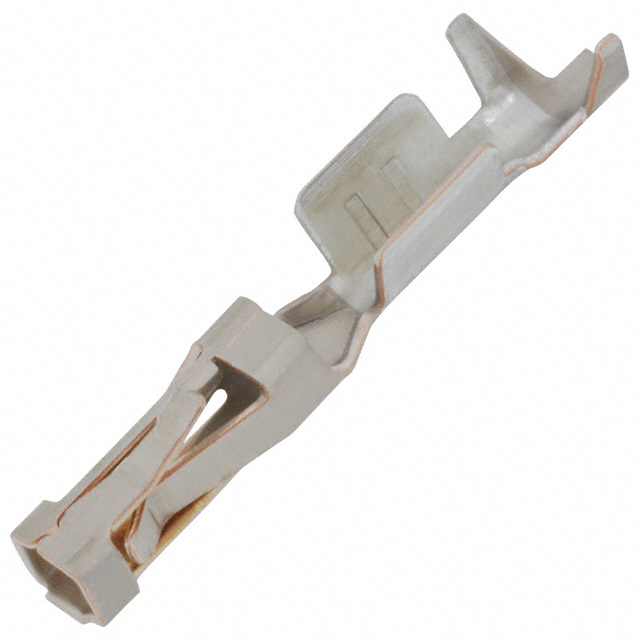

CONN SOCKET 20-24AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
104479-7
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20-24AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104479-7 | 104479 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin, Tin-Lead |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 2.54 Ám |
| Contact Finish Thickness | 30 Áin | 15 - 100 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 20 AWG | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 10 | $ 0.38 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| 2500 | $ 0.24 | |||
104479 Series
CONN SOCKET 20-24AWG CRIMP GOLD
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104479-7 | Gold | 0.76 Ám | 30 Áin | Crimp | Socket | 20 AWG | 24 AWG |
TE Connectivity AMP Connectors 104479-8 | Tin | 2.54 µm | 100 µin | Crimp | Socket | 20 AWG | 24 AWG |
TE Connectivity AMP Connectors 104479-6 | Gold | 0.38 µm | 15 µin | Crimp | Socket | 20 AWG | 24 AWG |
TE Connectivity AMP Connectors 104479-2 | Tin-Lead | 2.54 µm | 100 µin | Crimp | Socket | 20 AWG | 24 AWG |
TE Connectivity AMP Connectors 104479-5 | Tin-Lead | 2.54 µm | 100 µin | Crimp | Socket | 20 AWG | 24 AWG |
Description
General part information
104479 Series
Socket Contact Gold 20-24 AWG Crimp
