IRLHS6342TRPBF
ObsoleteIR MOSFET™ N-CHANNEL POWER MOSFET ; PQFN 2 X 2 PACKAGE; 15.5 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
IRLHS6342TRPBF
ObsoleteIR MOSFET™ N-CHANNEL POWER MOSFET ; PQFN 2 X 2 PACKAGE; 15.5 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IRLHS6342TRPBF |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 8.7 A |
| Current - Continuous Drain (Id) @ 25°C | 19 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 2.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 1019 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

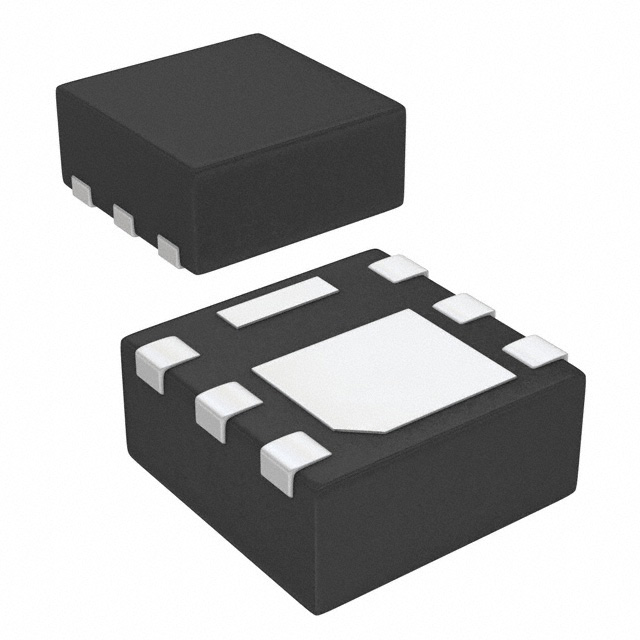

| Package / Case | 6-PowerVDFN |
| Power Dissipation (Max) | 2.1 W |
| Rds On (Max) @ Id, Vgs | 15.5 mOhm |
| Supplier Device Package | 6-PQFN (2x2) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 12 V |
| Vgs(th) (Max) @ Id | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IRLHS6342 Series
The StrongIRFET™ power MOSFET family is optimized for low RDS(on)and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.
