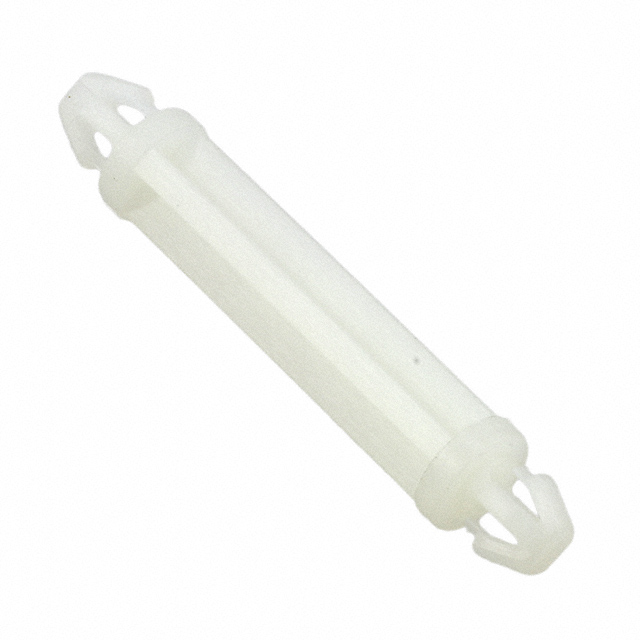

Specification	DLSP-1-18M-01

Between Board Height	0.709 in
Holding Type	Snap Lock
Length - Overall	1.102 in
Material	Nylon
Mounting Hole Diameter	0.156 in
Mounting Panel Thickness	0.063 in
Mounting Type	Snap Lock
Support Hole Diameter	0.156 in
Support Hole Diameter (Alternate)	5/32"
Support Panel Thickness	0.063 in

DLSP-1 Series

Part	Mounting Panel Thickness	Material	Between Board Height	Holding Type	Support Hole Diameter	Support Hole Diameter (Alternate)	Mounting Hole Diameter	Support Panel Thickness	Mounting Type	Length - Overall
Essentra Components DLSP-1-18M-01	0.063 in	Nylon	0.709 in	Snap Lock	0.156 in	5/32"	0.156 in	0.063 in	Snap Lock	1.102 in
Essentra Components DLSP-1-4M-01	0.063 in	Nylon	0.157 in	Snap Lock	0.156 in	5/32"	0.156 in	0.063 in	Snap Lock	0.551 in
Essentra Components DLSP-1-12M-01	0.063 in	Nylon	0.472 in	Snap Lock	0.156 in	5/32"	0.156 in	0.063 in	Snap Lock	0.866 in
Essentra Components DLSP-1-3M-01	0.063 in	Nylon	0.118 in	Snap Lock	0.156 in	5/32"	0.156 in	0.063 in	Snap Lock	0.512 in
Essentra Components DLSP-1-14M-01	0.063 in	Nylon	0.551 in	Snap Lock	0.156 in	5/32"	0.156 in	0.063 in	Snap Lock	0.945 in
Essentra Components DLSP-1-10M-01	0.063 in	Nylon	0.394 in	Snap Lock	0.156 in	5/32"	0.156 in	0.063 in	Snap Lock	0.787 in
