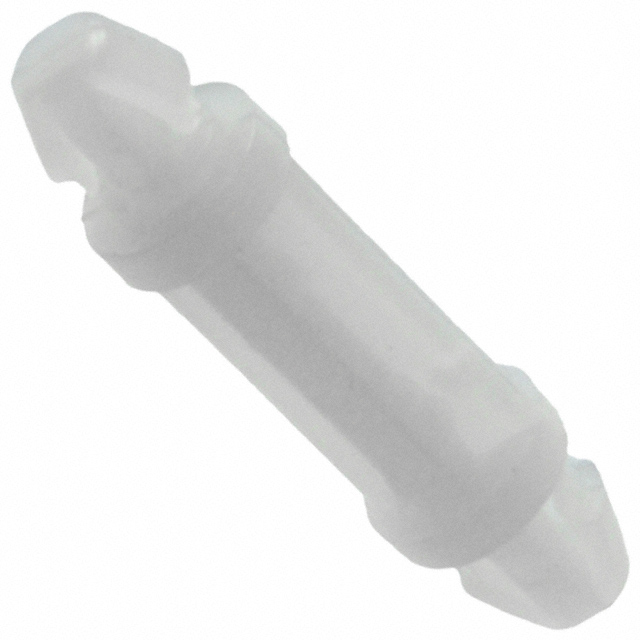

DLSP-1-12M-01

Active

Essentra Access Solutions

PCB SPACER SUPPORT, NYLON 6.6, 12MM,PK40

Search across all available documentation for this part.

Active

Essentra Access Solutions

PCB SPACER SUPPORT, NYLON 6.6, 12MM,PK40

Technical Specifications

Parameters and characteristics for this part

Specification	DLSP-1-12M-01

Between Board Height	0.472 in
Between Board Height	12 mm
Holding Type	Snap Lock
Length - Overall [x]	0.866 "
Length - Overall [x]	22 mm
Material	Nylon
Mounting Hole Diameter [diameter]	3.96 mm
Mounting Hole Diameter [diameter]	0.15625 in
Mounting Hole Diameter [diameter]	0.156 in
Mounting Panel Thickness	0.063 in
Mounting Panel Thickness	1.6 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.15625 in
Support Hole Diameter [diameter]	3.96 mm
Support Hole Diameter [diameter]	0.156 in
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Holding Type	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Material	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall
Essentra Access Solutions DLSP-1-18M-01	1.6 mm	0.063 in	18 mm	0.709 in	Snap Lock	Snap Lock	0.15625 in	3.96 mm	0.156 in	3.96 mm	0.15625 in	0.156 in	0.063 in	1.6 mm	Nylon
Essentra Access Solutions DLSP-1-4M-01	1.6 mm	0.063 in	4 mm	0.157 in	Snap Lock	Snap Lock	0.15625 in	3.96 mm	0.156 in	3.96 mm	0.15625 in	0.156 in	0.063 in	1.6 mm	Nylon	0.551 "	14 mm
Essentra Access Solutions DLSP-1-12M-01	1.6 mm	0.063 in	12 mm	0.472 in	Snap Lock	Snap Lock	0.15625 in	3.96 mm	0.156 in	3.96 mm	0.15625 in	0.156 in	0.063 in	1.6 mm	Nylon	0.866 "	22 mm
Essentra Access Solutions DLSP-1-3M-01	1.6 mm	0.063 in	3 mm	0.118 in	Snap Lock	Snap Lock	0.15625 in	3.96 mm	0.156 in	3.96 mm	0.15625 in	0.156 in	0.063 in	1.6 mm	Nylon			13 mm	0.512 "
Essentra Access Solutions DLSP-1-14M-01	1.6 mm	0.063 in	14 mm	0.551 in	Snap Lock	Snap Lock	0.15625 in	3.96 mm	0.156 in	3.96 mm	0.15625 in	0.156 in	0.063 in	1.6 mm	Nylon	0.945 in	24 mm
Essentra Access Solutions DLSP-1-10M-01	1.6 mm	0.063 in	10 mm	0.394 in	Snap Lock	Snap Lock	0.15625 in	3.96 mm	0.156 in	3.96 mm	0.15625 in	0.156 in	0.063 in	1.6 mm	Nylon	0.787 "	20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Lock / Snap Lock Nylon 0.472" (12.00mm)
