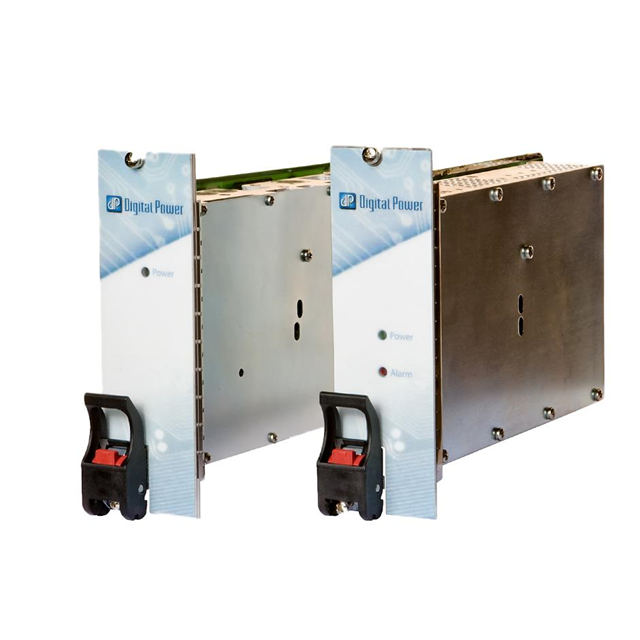

CPCI-DC-3U-200/48

Active

Digital Power Corporation

DC/DC CNVRTR 5V 3.3V +/-12V 241W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CPCI-DC-3U-200/48

Active

Digital Power Corporation

DC/DC CNVRTR 5V 3.3V +/-12V 241W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 429.56

Description

General part information

CPCI-DC Series

Enclosed DC DC Converter 4 Output 5V 3.3V 12V -12V 20A, 30A, 3A, 500mA 72V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPCI-DC-3U-200/48	CPCI-DC Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus
Current - Output (Max)	500 mA, 20 A, 30 A, 3 A	1 - 500 mA
Efficiency	83 %	83 %
Mounting Type	Compact PCI®	Compact PCI®
Number of Outputs	4	4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-5 °C	-5 °C
Power (Watts)	241 W	241 - 733 W
Size / Dimension [x]	6.67 in	6.67 - 10.31 in
Size / Dimension [x]	169.4 mm	169.4 - 261.9 mm
Size / Dimension [y]	100 mm	100 - 169.6 mm
Size / Dimension [y]	3.94 in	3.94 - 6.68 in
Size / Dimension [z]	40.6 mm	40.3 - 40.6 mm
Size / Dimension [z]	1.6 "	1.59 - 1.6 "
Standard Number	60950-1	60950-1
Type	Enclosed	Enclosed
Voltage - Input (Max) [Max]	72 V	36 - 72 V
Voltage - Input (Min) [Min]	36 V	18 - 36 V
Voltage - Output 1	5 V	5 V
Voltage - Output 2	3.3 V	3.3 V
Voltage - Output 3	12 V	12 V

CPCI-DC Series

CPCI DC/DC CNVRTR 5V 3.3V +/-12V

Part	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Power (Watts)	Mounting Type	Voltage - Output 2	Standard Number	Approval Agency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Output 3	Efficiency
Digital Power Corporation CPCI-DC-3U-200/24R	4	ITE (Commercial)	18 V	286 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	3 A, 25 A, 36 A, 500 mA	40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	36 V	12 V
Digital Power Corporation CPCI-DC-3U-200/24	4	ITE (Commercial)	18 V	286 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	3 A, 25 A, 36 A, 500 mA	40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	36 V	12 V
Digital Power Corporation CPCI-DC-6U-350/24 (900-6001-99)	4	ITE (Commercial)	18 V	550 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	1.5 A, 7 A, 50 A, 60 A	40.3 mm	169.6 mm	6.68 "	1.59 "	10.31 in	261.9 mm	5 V	36 V	12 V
Digital Power Corporation CPCI-DC-3U-200/48	4	ITE (Commercial)	36 V	241 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	3 A, 20 A, 30 A, 500 mA	40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	72 V	12 V	83 %
Digital Power Corporation CPCI-DC-6U-600/24 (900-6001-99)	4	ITE (Commercial)			Compact PCI®		60950-1	CE, cURus	Enclosed	-5 °C	70 °C		40.3 mm	169.6 mm	6.68 "	1.59 "	10.31 in	261.9 mm		36 V
Digital Power Corporation CPCI-DC-3U-300/48	4	ITE (Commercial)	36 V	354 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	1 A, 5 A, 30 A, 40 A	40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	72 V	12 V	83 %
Digital Power Corporation CPCI-DC-3U-300/24R	4	ITE (Commercial)	20 V	348 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C		40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	36 V	12 V
Digital Power Corporation CPCI-DC-6U-650 (100-4650-00)	4	ITE (Commercial)	36 V	733 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	1.5 A, 7 A, 70 A, 80 A	40.3 mm	169.6 mm	6.68 "	1.59 "	10.31 in	261.9 mm	5 V	72 V	12 V
