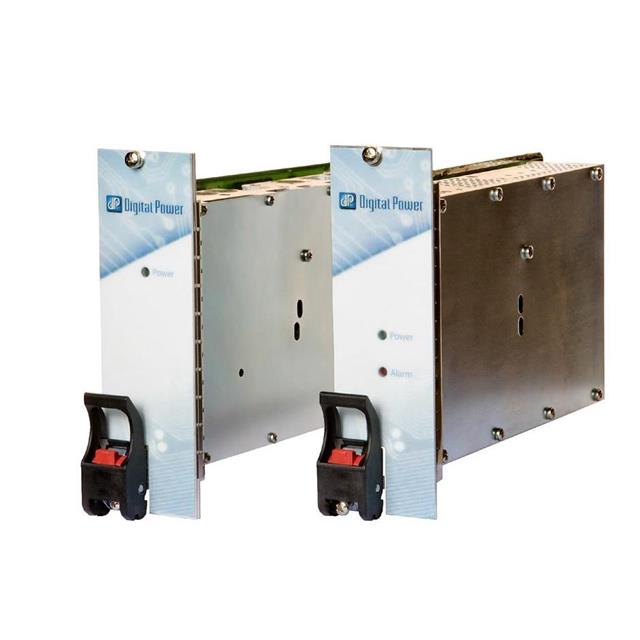

CPCI-DC-3U-200/24R

Active

Digital Power Corporation

CPCI DC/DC CNVRTR 5V 3.3V +/-12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CPCI-DC-3U-200/24R

Active

Digital Power Corporation

CPCI DC/DC CNVRTR 5V 3.3V +/-12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPCI-DC-3U-200/24R	CPCI-DC Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus
Current - Output (Max)	500 mA, 25 A, 36 A, 3 A	1 - 500 mA
Efficiency	-	83 %
Mounting Type	Compact PCI®	Compact PCI®
Number of Outputs	4	4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-5 °C	-5 °C
Power (Watts)	286 W	241 - 733 W
Size / Dimension [x]	6.67 in	6.67 - 10.31 in
Size / Dimension [x]	169.4 mm	169.4 - 261.9 mm
Size / Dimension [y]	100 mm	100 - 169.6 mm
Size / Dimension [y]	3.94 in	3.94 - 6.68 in
Size / Dimension [z]	40.6 mm	40.3 - 40.6 mm
Size / Dimension [z]	1.6 "	1.59 - 1.6 "
Standard Number	60950-1	60950-1
Type	Enclosed	Enclosed
Voltage - Input (Max) [Max]	36 V	36 - 72 V
Voltage - Input (Min) [Min]	18 V	18 - 36 V
Voltage - Output 1	5 V	5 V
Voltage - Output 2	3.3 V	3.3 V
Voltage - Output 3	12 V	12 V

CPCI-DC Series

CPCI DC/DC CNVRTR 5V 3.3V +/-12V

Part	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Power (Watts)	Mounting Type	Voltage - Output 2	Standard Number	Approval Agency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Output 3	Efficiency
Digital Power Corporation CPCI-DC-3U-200/24R	4	ITE (Commercial)	18 V	286 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	3 A, 25 A, 36 A, 500 mA	40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	36 V	12 V
Digital Power Corporation CPCI-DC-3U-200/24	4	ITE (Commercial)	18 V	286 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	3 A, 25 A, 36 A, 500 mA	40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	36 V	12 V
Digital Power Corporation CPCI-DC-6U-350/24 (900-6001-99)	4	ITE (Commercial)	18 V	550 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	1.5 A, 7 A, 50 A, 60 A	40.3 mm	169.6 mm	6.68 "	1.59 "	10.31 in	261.9 mm	5 V	36 V	12 V
Digital Power Corporation CPCI-DC-3U-200/48	4	ITE (Commercial)	36 V	241 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	3 A, 20 A, 30 A, 500 mA	40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	72 V	12 V	83 %
Digital Power Corporation CPCI-DC-6U-600/24 (900-6001-99)	4	ITE (Commercial)			Compact PCI®		60950-1	CE, cURus	Enclosed	-5 °C	70 °C		40.3 mm	169.6 mm	6.68 "	1.59 "	10.31 in	261.9 mm		36 V
Digital Power Corporation CPCI-DC-3U-300/48	4	ITE (Commercial)	36 V	354 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	1 A, 5 A, 30 A, 40 A	40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	72 V	12 V	83 %
Digital Power Corporation CPCI-DC-3U-300/24R	4	ITE (Commercial)	20 V	348 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C		40.6 mm	100 mm	3.94 in	1.6 "	6.67 in	169.4 mm	5 V	36 V	12 V
Digital Power Corporation CPCI-DC-6U-650 (100-4650-00)	4	ITE (Commercial)	36 V	733 W	Compact PCI®	3.3 V	60950-1	CE, cURus	Enclosed	-5 °C	70 °C	1.5 A, 7 A, 70 A, 80 A	40.3 mm	169.6 mm	6.68 "	1.59 "	10.31 in	261.9 mm	5 V	72 V	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 587.79

Description

General part information

CPCI-DC Series

Enclosed DC DC Converter 4 Output 5V 3.3V 12V -12V 25A, 36A, 3A, 500mA 36V Input
