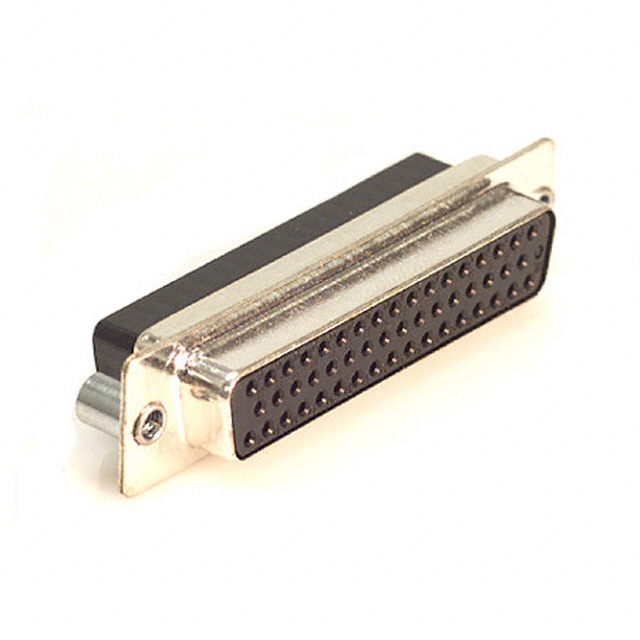

170-050-272L020
ObsoleteNorComp Inc.
CONN D-SUB HOUSING RCPT 50POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
170-050-272L020
ObsoleteNorComp Inc.
CONN D-SUB HOUSING RCPT 50POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 170-050-272L020 | 170-050 Series |
|---|---|---|
| Color | Black | Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Receptacle for Female Contacts | Plug for Male Contacts, Receptacle for Female Contacts |
| Contact Type | Signal | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled, Polybutylene Terephthalate (PBT) |
| Features | - | Grounding Indents |
| Flange Feature | Cable Side | Cable Side, Housing/Shell (Unthreaded), 4-40 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 50 | 50 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Shell Material, Finish | - | Nickel Plated, Steel |
| Shell Size, Connector Layout | 5 | 5 |
170-050 Series
CONN D-SUB HOUSING PLUG 50POS
| Part | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Dielectric Material | Color | Number of Rows | Connector Style | Flange Feature | Number of Positions | Note | Shell Size, Connector Layout | Connector Type | Shell Material, Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NorComp Inc. 170-050-172L010 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Black | 3 | D-Sub | Cable Side | 50 | Contacts Not Included | 5 | Plug for Male Contacts | ||
NorComp Inc. 170-050-273L000 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Black | 3 | D-Sub | Housing/Shell (Unthreaded) | 50 | Contacts Not Included | 5 | Receptacle for Female Contacts | Nickel Plated, Steel | |
NorComp Inc. 170-050-173L020 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | 3 | D-Sub | Cable Side | 50 | Contacts Not Included | 5 | Plug for Male Contacts | Nickel Plated, Steel | Grounding Indents | |
NorComp Inc. 170-050-273L020 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Black | 3 | D-Sub | Cable Side | 50 | Contacts Not Included | 5 | Receptacle for Female Contacts | Nickel Plated, Steel | |
NorComp Inc. 170-050-273L030 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Black | 3 | D-Sub | 4-40 | 50 | Contacts Not Included | 5 | Receptacle for Female Contacts | Nickel Plated, Steel | |
NorComp Inc. 170-050-272L020 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Black | 3 | D-Sub | Cable Side | 50 | Contacts Not Included | 5 | Receptacle for Female Contacts | ||
NorComp Inc. 170-050-272L030 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Black | 3 | D-Sub | 4-40 | 50 | Contacts Not Included | 5 | Receptacle for Female Contacts | ||
NorComp Inc. 170-050-173L010 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | 3 | D-Sub | Cable Side | 50 | Contacts Not Included | 5 | Plug for Male Contacts | Nickel Plated, Steel | Grounding Indents | |
NorComp Inc. 170-050-172L000 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Black | 3 | D-Sub | Housing/Shell (Unthreaded) | 50 | Contacts Not Included | 5 | Plug for Male Contacts | ||
NorComp Inc. 170-050-173L030 | Signal | -50 °C | 125 °C | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | 3 | D-Sub | 4-40 | 50 | Contacts Not Included | 5 | Plug for Male Contacts | Nickel Plated, Steel | Grounding Indents |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
170-050 Series
Receptacle for Female Contacts Housing D-Sub Connector 50 Position
