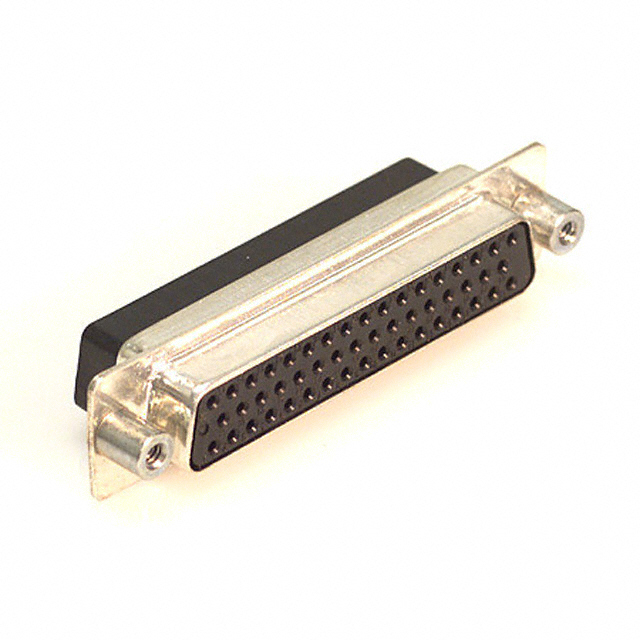

170-050-272L030

Obsolete

NorComp Inc.

CONN D-SUB HOUSING RCPT 50POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

170-050-272L030

Obsolete

NorComp Inc.

CONN D-SUB HOUSING RCPT 50POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

170-050 Series

Receptacle for Female Contacts Housing D-Sub Connector 50 Position

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	170-050-272L030	170-050 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle for Female Contacts	Plug for Male Contacts, Receptacle for Female Contacts
Contact Type	Signal	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled, Polybutylene Terephthalate (PBT)
Features	-	Grounding Indents
Flange Feature	4-40	Cable Side, Housing/Shell (Unthreaded), 4-40
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	50	50
Number of Rows	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-50 °C	-50 °C
Shell Material, Finish	-	Nickel Plated, Steel
Shell Size, Connector Layout	5	5

170-050 Series

CONN D-SUB HOUSING PLUG 50POS

Part	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Dielectric Material	Color	Number of Rows	Connector Style	Flange Feature	Number of Positions	Note	Shell Size, Connector Layout	Connector Type	Shell Material, Finish	Features
NorComp Inc. 170-050-172L010	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled	Black	3	D-Sub	Cable Side	50	Contacts Not Included	5	Plug for Male Contacts
NorComp Inc. 170-050-273L000	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Black	3	D-Sub	Housing/Shell (Unthreaded)	50	Contacts Not Included	5	Receptacle for Female Contacts	Nickel Plated, Steel
NorComp Inc. 170-050-173L020	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled		3	D-Sub	Cable Side	50	Contacts Not Included	5	Plug for Male Contacts	Nickel Plated, Steel	Grounding Indents
NorComp Inc. 170-050-273L020	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Black	3	D-Sub	Cable Side	50	Contacts Not Included	5	Receptacle for Female Contacts	Nickel Plated, Steel
NorComp Inc. 170-050-273L030	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Black	3	D-Sub	4-40	50	Contacts Not Included	5	Receptacle for Female Contacts	Nickel Plated, Steel
NorComp Inc. 170-050-272L020	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled	Black	3	D-Sub	Cable Side	50	Contacts Not Included	5	Receptacle for Female Contacts
NorComp Inc. 170-050-272L030	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled	Black	3	D-Sub	4-40	50	Contacts Not Included	5	Receptacle for Female Contacts
NorComp Inc. 170-050-173L010	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled		3	D-Sub	Cable Side	50	Contacts Not Included	5	Plug for Male Contacts	Nickel Plated, Steel	Grounding Indents
NorComp Inc. 170-050-172L000	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled	Black	3	D-Sub	Housing/Shell (Unthreaded)	50	Contacts Not Included	5	Plug for Male Contacts
NorComp Inc. 170-050-173L030	Signal	-50 °C	125 °C	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled		3	D-Sub	4-40	50	Contacts Not Included	5	Plug for Male Contacts	Nickel Plated, Steel	Grounding Indents
