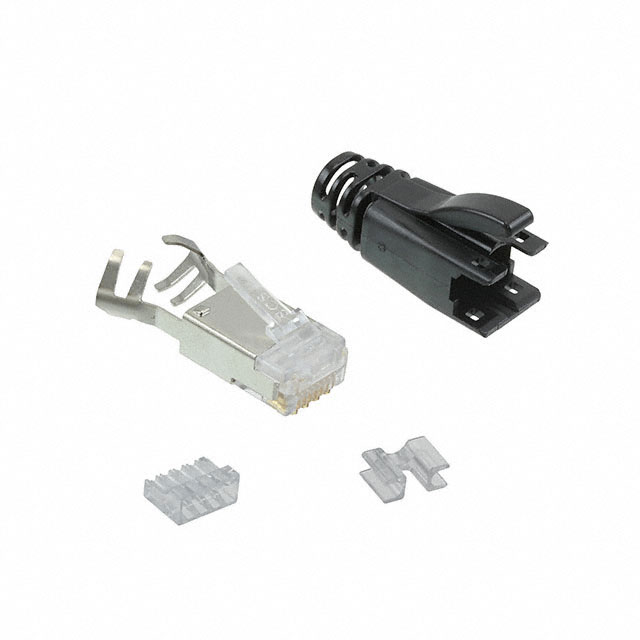

SS-39200-027
ActiveBEL MAGNETIC SOLUTIONS
CONN MOD PLUG 8P8C SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsProduct Change Notice EN
SS-39200-027
ActiveBEL MAGNETIC SOLUTIONS
CONN MOD PLUG 8P8C SHIELDED
Deep-Dive with AI
DocumentsProduct Change Notice EN
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-39200-027 |
|---|---|
| Cable Type | Round Cable, Solid, Stranded Wires |
| Color | Black Boot, Translucent - Clear |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Features | Molded Boot, Cable Clamp |
| Housing Material | Polycarbonate (PC) |
| Length | 44.45 mm |
| Length | 1.75 in |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Ratings | Cat6a |
| Shield Material | Copper Alloy |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 150 VDC |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 23 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.17 | |
| 10 | $ 4.72 | |||
| 25 | $ 4.26 | |||
| 50 | $ 3.95 | |||
| 100 | $ 3.66 | |||
| 250 | $ 3.33 | |||
| 500 | $ 3.10 | |||
| 1000 | $ 2.89 | |||
| 2500 | $ 2.65 | |||
Description
General part information
SS-39200 Series
Crimpers / Crimping Tools Mod Hand Crimp Tool KIT 0.315-0.330
