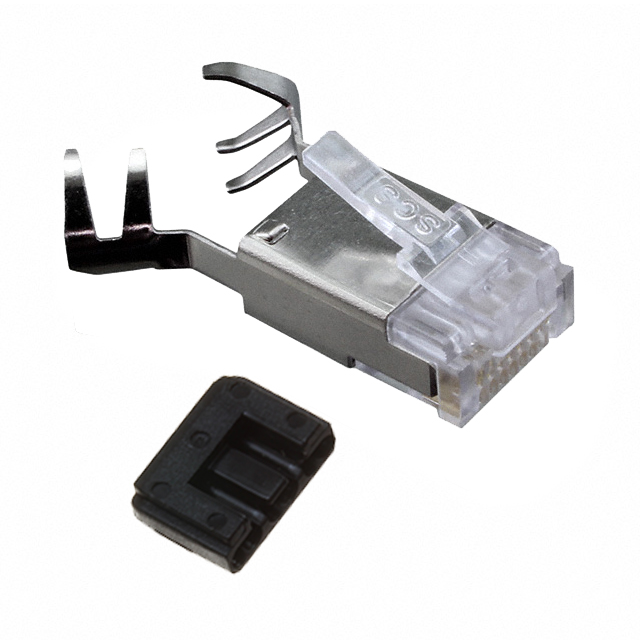

Specification	SS-39200-010

Cable Type	Solid or Stranded Wires, Round Cable
Color	Translucent - Clear
Connector Type	Plug, Ethernet, RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Copper Alloy
Current Rating	1.5 A
Features	Cable Clamp
Housing Material	PC, Polycarbonate
Length	1.31 in
Number of Contacts	8
Number of Positions	8
Ratings	Cat6
Shield Material	Copper Alloy
Shielding	Shielded
Termination	IDC
Voltage Rating	150 VDC

SS-39200 Series

Crimpers / Crimping Tools Mod Hand Crimp Tool KIT 0.315-0.330

Part	Connector Type	Shielding	Color	Termination	Number of Positions	Number of Contacts	Ingress Protection	Length	Ratings	Features	Cable Type	Housing Material	Contact Finish	Contact Material	Shield Material	Voltage Rating	Contact Finish Thickness	Current Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
Bel Fuse Inc. SS-39200-090	Ethernet Plug RJ45	Shielded	Black Boot Translucent - Clear Translucent - Clear; Black Boot	IDC	8	8	IP20	1.42 in	Cat6a	Cable Clamp Molded Boot	Round Cable Solid or Stranded Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy
Bel Fuse Inc. SS-39200-044	Ethernet Plug RJ45	Shielded	Translucent - Clear	IDC	8	8		0.89 in	Cat6		Round Cable Solid Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy	150 VDC	50 µin	1.5 A
Bel Fuse Inc. SS-39200-085	Ethernet Plug RJ45	Shielded	Black Boot Translucent - Clear Translucent - Clear; Black Boot	IDC	8	8	IP20	1.42 in	Cat6a	Cable Clamp Molded Boot	Round Cable Solid or Stranded Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy
Bel Fuse Inc. SS-39200-023	Ethernet Plug RJ45	Shielded	Translucent - Clear	Crimp	8	8		1.295 in	Cat6a	Cable Clamp	Round Cable Solid or Stranded Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy	150 VDC	50 µin	1.5 A
Bel Fuse Inc. SS-39200-010	Ethernet Plug RJ45	Shielded	Translucent - Clear	IDC	8	8		1.31 in	Cat6	Cable Clamp	Round Cable Solid or Stranded Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy	150 VDC	50 µin	1.5 A
Bel Fuse Inc. SS-39200-089	Ethernet Plug RJ45	Shielded	Black Boot Translucent - Clear Translucent - Clear; Black Boot	IDC	8	8	IP20	1.42 in	Cat6a	Cable Clamp Molded Boot	Round Cable Solid or Stranded Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy
Bel Fuse Inc. SS-39200-027	Ethernet Plug RJ45	Shielded	Black Boot Translucent - Clear Translucent - Clear; Black Boot	Crimp	8	8		1.75 in	Cat6a	Cable Clamp Molded Boot	Round Cable Solid or Stranded Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy	150 VDC	50 µin	1.5 A	23 AWG	28 AWG
Bel Fuse Inc. SS-39200-083	Ethernet Plug RJ45	Shielded	Black Boot Translucent - Clear Translucent - Clear; Black Boot	IDC	8	8	IP20	1.42 in	Cat6a	Cable Clamp Molded Boot	Round Cable Solid or Stranded Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy
Bel Fuse Inc. SS-39200-024	Ethernet Plug RJ45	Shielded	Translucent - Clear	Crimp	8	8		1.75 in	Cat6a	Cable Clamp	Round Cable Solid or Stranded Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy	150 VDC	50 µin	1.5 A
Bel Fuse Inc. SS-39200-019	Ethernet Plug RJ45	Shielded	Translucent - Clear	Crimp	8	8		1.31 in	Cat6	Cable Clamp	Round Cable Solid or Stranded Wires	PC Polycarbonate	Gold	Copper Alloy	Copper Alloy	150 VDC	50 µin	1.5 A
