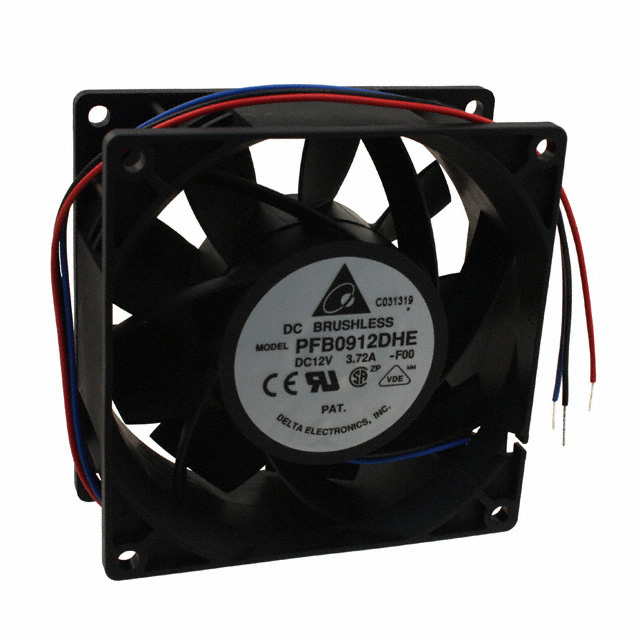

PFB0912DHE-F00
Delta Electronics
FAN AXIAL 92X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
PFB0912DHE-F00
Delta Electronics
FAN AXIAL 92X38MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFB0912DHE-F00 |
|---|---|
| Air Flow | 4.9 mł/min |
| Air Flow | 175 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 3.1 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 66.5 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 37.2 W |
| RPM | 8000 RPM |
| Static Pressure | 453.1 Pa |
| Static Pressure | 1.819 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 0.553 lb |
| Weight | 250.84 g |
| Width [y] | 38 mm |
PFB0912 Series
| Part | Fan Type | RPM | Current Rating (Amps) | Power (Watts) | Bearing Type | Voltage Range [Max] | Voltage Range [Min] | Static Pressure | Static Pressure | Width [y] | Ingress Protection | Approval Agency | Noise | Voltage - Rated | Weight | Weight | Material - Frame | Material - Blade | Lifetime @ Temp. | Termination | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | Tubeaxial | 8000 RPM | 3.1 A | 37.2 W | Ball | 13.2 VDC | 7 V | 453.1 Pa | 1.819 in H2O | 38 mm | IP55 - Dust Protected Water Resistant | CE CSA UL VDE | 66.5 dB(A) | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 50000 Hrs | 2 Wire Leads | 4.9 mł/min | 175 CFM | -10 °C | -10 °C | 60 °C | 60 °C | |
Delta Electronics | Tubeaxial | 7000 RPM | 1.96 A | Ball | 13.2 VDC | 7 V | 360.9 Pa | 1.449 in H2O | 38 mm | CE CSA UL VDE | 64 dB(A) | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 50000 Hrs | 2 Wire Leads | 4.3 m³/min | 153.5 CFM | -10 °C | -10 °C | 60 °C | 60 °C | |||
Delta Electronics | Tubeaxial | 4800 RPM | 0.68 A | 8.16 W | Ball | 13.2 VDC | 7 V | 172.1 Pa | 0.691 in H2O | 38 mm | IP55 - Dust Protected Water Resistant | CE CSA UL VDE | 54 dB | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 70000 Hrs | 2 Wire Leads | 2.9 m³/min | 103.7 CFM | -10 °C | -10 °C | 60 °C | 60 °C | |
Delta Electronics | Tubeaxial | 6000 RPM | 1.22 A | 14.64 W | Ball | 13.2 VDC | 7 V | 252.8 Pa | 1.015 in H2O | 38 mm | CE CSA UL VDE | 60.5 dB(A) | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 50000 Hrs | 3 Wire Leads | 3.62 m³/min | 129.3 CFM | -10 °C | -10 °C | 60 °C | 60 °C | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | Tubeaxial | 7000 RPM | 1.96 A | Ball | 13.2 VDC | 7 V | 360.9 Pa | 1.449 in H2O | 38 mm | CE CSA UL VDE | 64 dB(A) | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 50000 Hrs | 3 Wire Leads | 4.3 m³/min | 153.5 CFM | -10 °C | -10 °C | 60 °C | 60 °C | Locked Rotor Protection Speed Sensor (Tach) | ||
Delta Electronics | Tubeaxial | 4400 RPM | 0.55 A | 6.6 W | Ball | 13.2 VDC | 7 V | 144 Pa | 0.578 in H2O | 38 mm | CE CSA UL VDE | 51.7 dB(A) | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 2 Wire Leads | 2.64 mł/min | 94.2 CFM | -10 °C | -10 °C | 60 °C | 60 °C | |||
Delta Electronics | Tubeaxial | 8000 RPM | 3.1 A | 37.2 W | Ball | 13.2 VDC | 7 V | 453.1 Pa | 1.819 in H2O | 38 mm | CE CSA UL VDE | 66.5 dB(A) | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 50000 Hrs | 3 Wire Leads | 4.9 mł/min | 175 CFM | -10 °C | -10 °C | 60 °C | 60 °C | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | Tubeaxial | 7000 RPM | 1.96 A | Ball | 13.2 VDC | 7 V | 360.9 Pa | 1.449 in H2O | 38 mm | IP54 - Dust Protected Water Resistant | CE CSA UL VDE | 64 dB(A) | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 50000 Hrs | 2 Wire Leads | 4.3 m³/min | 153.5 CFM | -10 °C | -10 °C | 60 °C | 60 °C | ||
Delta Electronics | Tubeaxial | 4800 RPM | 0.68 A | 8.16 W | Ball | 13.2 VDC | 7 V | 172.1 Pa | 0.691 in H2O | 38 mm | CE CSA UL VDE | 54 dB | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 70000 Hrs | 2 Wire Leads | 2.9 m³/min | 103.7 CFM | -10 °C | -10 °C | 60 °C | 60 °C | ||
Delta Electronics | Tubeaxial | 6000 RPM | 1.22 A | 14.64 W | Ball | 13.2 VDC | 7 V | 252.8 Pa | 1.015 in H2O | 38 mm | CE CSA UL VDE | 60.5 dB(A) | 12 VDC | 0.553 lb | 250.84 g | Plastic | Plastic | 50000 Hrs | 2 Wire Leads | 3.62 m³/min | 129.3 CFM | -10 °C | -10 °C | 60 °C | 60 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.67 | |
| 10 | $ 30.06 | |||
| 25 | $ 27.77 | |||
| 50 | $ 26.15 | |||
| 100 | $ 24.62 | |||
| 250 | $ 22.73 | |||
Description
General part information
PFB0912 Series
Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 175.0 CFM (4.90m³/min) 3 Wire Leads
