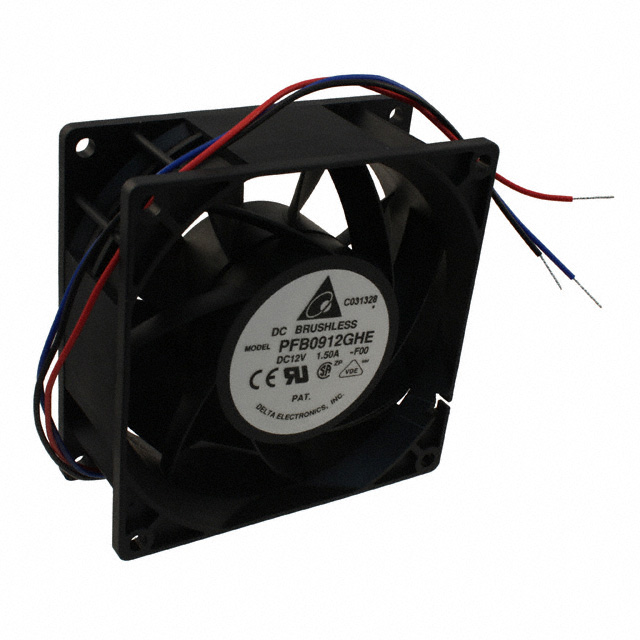

PFB0912GHE-F00

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Fans, Blowers CSA Cert +1

PFB0912GHE-F00

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Fans, Blowers CSA Cert +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PFB0912GHE-F00

Air Flow	129.3 CFM
Air Flow	3.62 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.22 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	60.5 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	14.64 W
RPM	6000 RPM
Static Pressure	1.015 in H2O
Static Pressure	252.8 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	0.553 lb
Weight	250.84 g
Width [y]	38 mm

PFB0912 Series

Part	Fan Type	RPM	Current Rating (Amps)	Power (Watts)	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Width [y]	Ingress Protection	Approval Agency	Noise	Voltage - Rated	Weight	Weight	Material - Frame	Material - Blade	Lifetime @ Temp.	Termination	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features
Delta Electronics PFB0912DHE-T500	Tubeaxial	8000 RPM	3.1 A	37.2 W	Ball	13.2 VDC	7 V	453.1 Pa	1.819 in H2O	38 mm	IP55 - Dust Protected Water Resistant	CE CSA UL VDE	66.5 dB(A)	12 VDC	0.553 lb	250.84 g	Plastic	Plastic	50000 Hrs	2 Wire Leads	4.9 mł/min	175 CFM	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics PFB0912UHE	Tubeaxial	7000 RPM	1.96 A		Ball	13.2 VDC	7 V	360.9 Pa	1.449 in H2O	38 mm		CE CSA UL VDE	64 dB(A)	12 VDC	0.553 lb	250.84 g	Plastic	Plastic	50000 Hrs	2 Wire Leads	4.3 m³/min	153.5 CFM	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics PFB0912EHE-T500	Tubeaxial	4800 RPM	0.68 A	8.16 W	Ball	13.2 VDC	7 V	172.1 Pa	0.691 in H2O	38 mm	IP55 - Dust Protected Water Resistant	CE CSA UL VDE	54 dB	12 VDC	0.553 lb	250.84 g	Plastic	Plastic	70000 Hrs	2 Wire Leads	2.9 m³/min	103.7 CFM	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics PFB0912GHE-F00	Tubeaxial	6000 RPM	1.22 A	14.64 W	Ball	13.2 VDC	7 V	252.8 Pa	1.015 in H2O	38 mm		CE CSA UL VDE	60.5 dB(A)	12 VDC	0.553 lb	250.84 g	Plastic	Plastic	50000 Hrs	3 Wire Leads	3.62 m³/min	129.3 CFM	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics PFB0912UHE-F00	Tubeaxial	7000 RPM	1.96 A		Ball	13.2 VDC	7 V	360.9 Pa	1.449 in H2O	38 mm		CE CSA UL VDE	64 dB(A)	12 VDC	0.553 lb	250.84 g	Plastic	Plastic	50000 Hrs	3 Wire Leads	4.3 m³/min	153.5 CFM	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics PFB0912SHE	Tubeaxial	4400 RPM	0.55 A	6.6 W	Ball	13.2 VDC	7 V	144 Pa	0.578 in H2O	38 mm		CE CSA UL VDE	51.7 dB(A)	12 VDC	0.553 lb	250.84 g	Plastic	Plastic		2 Wire Leads	2.64 mł/min	94.2 CFM	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics PFB0912DHE-F00	Tubeaxial	8000 RPM	3.1 A	37.2 W	Ball	13.2 VDC	7 V	453.1 Pa	1.819 in H2O	38 mm		CE CSA UL VDE	66.5 dB(A)	12 VDC	0.553 lb	250.84 g	Plastic	Plastic	50000 Hrs	3 Wire Leads	4.9 mł/min	175 CFM	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics PFB0912UHE-T500	Tubeaxial	7000 RPM	1.96 A		Ball	13.2 VDC	7 V	360.9 Pa	1.449 in H2O	38 mm	IP54 - Dust Protected Water Resistant	CE CSA UL VDE	64 dB(A)	12 VDC	0.553 lb	250.84 g	Plastic	Plastic	50000 Hrs	2 Wire Leads	4.3 m³/min	153.5 CFM	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics PFB0912EHE	Tubeaxial	4800 RPM	0.68 A	8.16 W	Ball	13.2 VDC	7 V	172.1 Pa	0.691 in H2O	38 mm		CE CSA UL VDE	54 dB	12 VDC	0.553 lb	250.84 g	Plastic	Plastic	70000 Hrs	2 Wire Leads	2.9 m³/min	103.7 CFM	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics PFB0912GHE	Tubeaxial	6000 RPM	1.22 A	14.64 W	Ball	13.2 VDC	7 V	252.8 Pa	1.015 in H2O	38 mm		CE CSA UL VDE	60.5 dB(A)	12 VDC	0.553 lb	250.84 g	Plastic	Plastic	50000 Hrs	2 Wire Leads	3.62 m³/min	129.3 CFM	-10 °C	-10 °C	60 °C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PFB0912 Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 129.3 CFM (3.62m³/min) 3 Wire Leads
