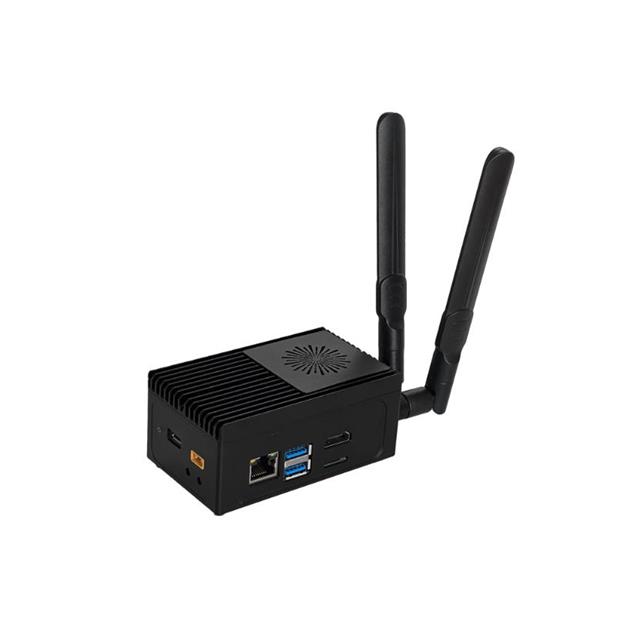

114110147

Active

Seeed Technology Co., Ltd

SBC 6 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Seeed Technology Co., Ltd

SBC 6 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	114110147	114110 Series

Cooling Type	Fan + Heat Sink	Fan, Fan + Heat Sink
Core Processor	NVIDIA Carmel ARMv8.2	NVIDIA Carmel ARMv8.2, Raspberry Pi CM4
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Ethernet	-	2
Ethernet	-	RJ45
Expansion Site/Bus	HDMI, I2S, CAN, microSD, GPIO, Wi-Fi/Bluetooth, RS-232, SPI, Ethernet, RJ-45, RTC, USB, UART, I2C, Audio	UART, RS-485, microSD, I2S, Wi-Fi/Bluetooth, RS-232, I2C, SPI, Ethernet, RTC, CAN, HDMI, USB, RJ-45, Audio, M.2, GPIO
Form Factor	Small Size	Small Size, Mini-ITX
Number of Cores	6	6
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-25 - -20 °C
Power (Watts)	90 W	90 - 500 W
RAM Capacity/Installed	-	-
RAM Capacity/Installed	-	0 GB
RAM Capacity/Installed [custom]	8 GB	8 GB
RAM Capacity/Installed [custom]	0 GB	0 GB
RS-232 (422, 485)	1	1 - 2
Size / Dimension [x]	3.937 in	3.937 - 8.071 in
Size / Dimension [x]	100 mm	100 - 205 mm
Size / Dimension [y]	2.323 in	2.323 - 6.69 "
Size / Dimension [y]	59 mm	59 - 170 mm
Size / Dimension [z]	44 mm	44 - 65 mm
Size / Dimension [z]	1.732 in	1.732 - 2.559 "
Storage Interface	M.2, NVME, SSD, microSD	M.2, NVME, SSD, microSD
USB	USB Micro (1), USB 3.0 (4)	USB Micro (1), USB 2.0 Type C (1), USB 3.0 Type A (4), micro USB 2.0 (1), USB 2.0 (4), USB 3.0 (4)
Video Outputs	HDMI, CSI, DP	DP, HDMI, CSI
Watchdog Timer	False	False

SBC 6 CORE 8GB/0GB RAM

Part	Core Processor	USB	Expansion Site/Bus	Power (Watts)	Number of Cores	Cooling Type	Form Factor	Storage Interface	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	RS-232 (422, 485)	Ethernet	Operating Temperature [Min]	Operating Temperature [Max]	Video Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Ethernet [custom]	Ethernet	RAM Capacity/Installed	RAM Capacity/Installed
Seeed Technology Co., Ltd 114110148	NVIDIA Carmel ARMv8.2	USB 2.0 Type C (1), USB 3.0 Type A (4), USB Micro (1)	Audio, CAN, Ethernet, HDMI, I2C, I2S, microSD, RJ-45, RS-232, RS-485, RTC, SPI, UART, USB, Wi-Fi/Bluetooth	90 W	6	Fan	Small Size	M.2, microSD, NVME, SSD	8 GB	0 GB	2	10 Mbps, 100 Mbps, 1000 Mbps	-25 °C	80 C	DP, HDMI	2.559 "	5.118 "	130 mm	65 mm	8.071 in	205 mm
Seeed Technology Co., Ltd 114110107	Raspberry Pi CM4	micro USB 2.0 (1), USB 2.0 (4)	M.2	100 W, 500 W	6	Fan	Mini-ITX	M.2							HDMI		6.69 in	170 mm		6.69 "	170 mm	2	RJ45	-	0 GB
Seeed Technology Co., Ltd 114110147	NVIDIA Carmel ARMv8.2	USB 3.0 (4), USB Micro (1)	Audio, CAN, Ethernet, GPIO, HDMI, I2C, I2S, microSD, RJ-45, RS-232, RTC, SPI, UART, USB, Wi-Fi/Bluetooth	90 W	6	Fan + Heat Sink	Small Size	M.2, microSD, NVME, SSD	8 GB	0 GB	1	10 Mbps, 100 Mbps, 1000 Mbps	-20 C	80 C	CSI, DP, HDMI	1.732 in	2.323 in	59 mm	44 mm	3.937 in	100 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 874.80

General part information

Single Board Computer 6 Core 8GB/0GB RAM NVIDIA Carmel ARMv8.2
