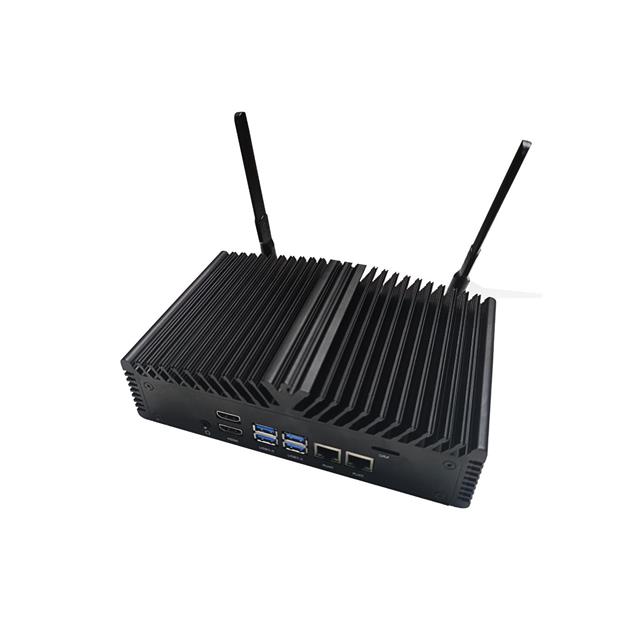

114110148

Active

Seeed Technology Co., Ltd

SBC 6 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Seeed Technology Co., Ltd

SBC 6 CORE 8GB/0GB RAM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 999.01

General part information

Single Board Computer 6 Core 8GB/0GB RAM NVIDIA Carmel ARMv8.2

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	114110148	114110 Series

Cooling Type	Fan	Fan, Fan + Heat Sink
Core Processor	NVIDIA Carmel ARMv8.2	NVIDIA Carmel ARMv8.2, Raspberry Pi CM4
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Ethernet	-	2
Ethernet	-	RJ45
Expansion Site/Bus	UART, RS-485, microSD, I2S, Wi-Fi/Bluetooth, RS-232, I2C, SPI, Ethernet, RTC, CAN, HDMI, USB, RJ-45, Audio	UART, RS-485, microSD, I2S, Wi-Fi/Bluetooth, RS-232, I2C, SPI, Ethernet, RTC, CAN, HDMI, USB, RJ-45, Audio, M.2, GPIO
Form Factor	Small Size	Small Size, Mini-ITX
Number of Cores	6	6
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-25 °C	-25 - -20 °C
Power (Watts)	90 W	90 - 500 W
RAM Capacity/Installed	-	-
RAM Capacity/Installed	-	0 GB
RAM Capacity/Installed [custom]	8 GB	8 GB
RAM Capacity/Installed [custom]	0 GB	0 GB
RS-232 (422, 485)	2	1 - 2
Size / Dimension [x]	8.071 in	3.937 - 8.071 in
Size / Dimension [x]	205 mm	100 - 205 mm
Size / Dimension [y]	5.118 "	2.323 - 6.69 "
Size / Dimension [y]	130 mm	59 - 170 mm
Size / Dimension [z]	2.559 "	1.732 - 2.559 "
Size / Dimension [z]	65 mm	44 - 65 mm
Storage Interface	M.2, NVME, SSD, microSD	M.2, NVME, SSD, microSD
USB	USB Micro (1), USB 2.0 Type C (1), USB 3.0 Type A (4)	USB Micro (1), USB 2.0 Type C (1), USB 3.0 Type A (4), micro USB 2.0 (1), USB 2.0 (4), USB 3.0 (4)
Video Outputs	DP, HDMI	DP, HDMI, CSI
Watchdog Timer	False	False

SBC 6 CORE 8GB/0GB RAM

Part	Core Processor	USB	Expansion Site/Bus	Power (Watts)	Number of Cores	Cooling Type	Form Factor	Storage Interface	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	RS-232 (422, 485)	Ethernet	Operating Temperature [Min]	Operating Temperature [Max]	Video Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Ethernet [custom]	Ethernet	RAM Capacity/Installed	RAM Capacity/Installed
Seeed Technology Co., Ltd 114110148	NVIDIA Carmel ARMv8.2	USB 2.0 Type C (1), USB 3.0 Type A (4), USB Micro (1)	Audio, CAN, Ethernet, HDMI, I2C, I2S, microSD, RJ-45, RS-232, RS-485, RTC, SPI, UART, USB, Wi-Fi/Bluetooth	90 W	6	Fan	Small Size	M.2, microSD, NVME, SSD	8 GB	0 GB	2	10 Mbps, 100 Mbps, 1000 Mbps	-25 °C	80 C	DP, HDMI	2.559 "	5.118 "	130 mm	65 mm	8.071 in	205 mm
Seeed Technology Co., Ltd 114110107	Raspberry Pi CM4	micro USB 2.0 (1), USB 2.0 (4)	M.2	100 W, 500 W	6	Fan	Mini-ITX	M.2							HDMI		6.69 in	170 mm		6.69 "	170 mm	2	RJ45	-	0 GB
Seeed Technology Co., Ltd 114110147	NVIDIA Carmel ARMv8.2	USB 3.0 (4), USB Micro (1)	Audio, CAN, Ethernet, GPIO, HDMI, I2C, I2S, microSD, RJ-45, RS-232, RTC, SPI, UART, USB, Wi-Fi/Bluetooth	90 W	6	Fan + Heat Sink	Small Size	M.2, microSD, NVME, SSD	8 GB	0 GB	1	10 Mbps, 100 Mbps, 1000 Mbps	-20 C	80 C	CSI, DP, HDMI	1.732 in	2.323 in	59 mm	44 mm	3.937 in	100 mm
