AFFC-050-18-076-11

Active

Assmann WSW Components

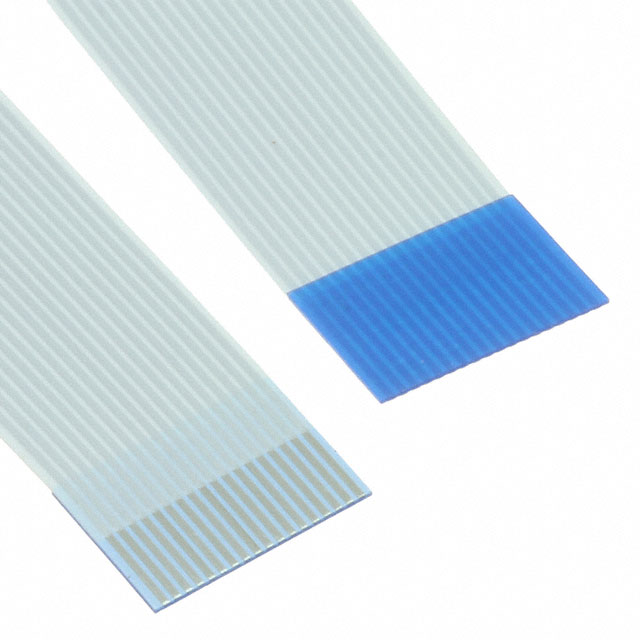

CABLE FFC/FPC 18POS 0.5MM 3"

Search across all available documentation for this part.

Active

Assmann WSW Components

CABLE FFC/FPC 18POS 0.5MM 3"

Technical Specifications

Parameters and characteristics for this part

Specification	AFFC-050-18-076-11

Cable Type	FPC, FFC
Length	3 in
Length	76.2 mm
Length - Exposed Ends [x]	3.5 mm
Length - Exposed Ends [x]	0.138 in
Number of Conductors	18
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Termination Style	Number of Conductors	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Length	Length	Cable Type
Assmann WSW Components AFFC-050-18-076-11	Backers on Both Sides Top on Both Sides	18	3.5 mm	0.138 in	0.5 mm	0.02 in	3 in	76.2 mm	FFC FPC
Assmann WSW Components AFFC-050-30-051-11	Backers on Both Sides Top on Both Sides	30	3.5 mm	0.138 in	0.5 mm	0.02 in	2 in	50.8 mm	FFC FPC
Assmann WSW Components AFFC-050-36-153-11	Backers on Both Sides Top on Both Sides	36	3.5 mm	0.138 in	0.5 mm	0.02 in	6 in	152.4 mm	FFC FPC
Assmann WSW Components AFFC-050-15-102-11	Backers on Both Sides Top on Both Sides	15	3.5 mm	0.138 in	0.5 mm	0.02 in	4 in	101.6 mm	FFC FPC
Assmann WSW Components AFFC-050-17-153-11	Backers on Both Sides Top on Both Sides	17	3.5 mm	0.138 in	0.5 mm	0.02 in	6 in	152.4 mm	FFC FPC
Assmann WSW Components AFFC-050-10-102-11	Backers on Both Sides Top on Both Sides	10	3.5 mm	0.138 in	0.5 mm	0.02 in	4 in	101.6 mm	FFC FPC
Assmann WSW Components AFFC-050-15-051-11	Backers on Both Sides Top on Both Sides	15	3.5 mm	0.138 in	0.5 mm	0.02 in	2 in	50.8 mm	FFC FPC
Assmann WSW Components AFFC-050-50-102-11	Backers on Both Sides Top on Both Sides	50	3.5 mm	0.138 in	0.5 mm	0.02 in	4 in	101.6 mm	FFC FPC
Assmann WSW Components AFFC-050-10-153-11	Backers on Both Sides Top on Both Sides	10	3.5 mm	0.138 in	0.5 mm	0.02 in	6 in	152.4 mm	FFC FPC
Assmann WSW Components AFFC-050-40-051-11	Backers on Both Sides Top on Both Sides	40	3.5 mm	0.138 in	0.5 mm	0.02 in	2 in	50.8 mm	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 1.42

General part information

18 Position FFC, FPC Cable 0.020" (0.50mm) 3.000" (76.20mm)
