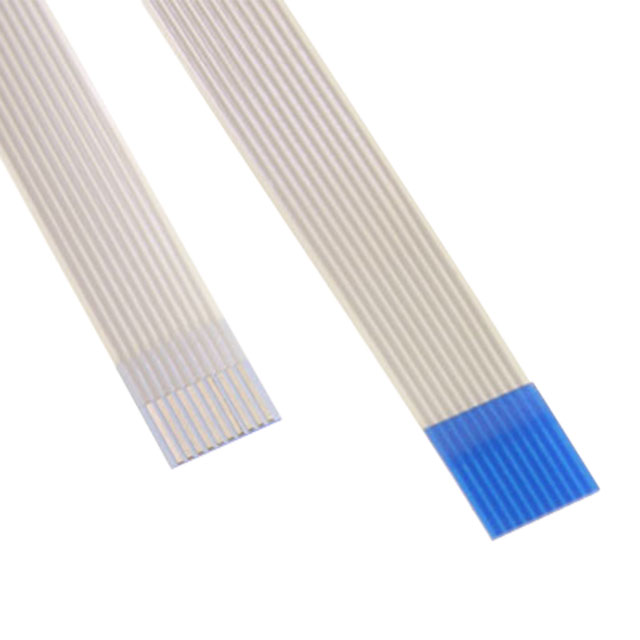

AFFC-050-10-153-11

Active

Assmann WSW Components

CABLE FFC/FPC 10POS 0.5MM 6"

Search across all available documentation for this part.

Active

Assmann WSW Components

CABLE FFC/FPC 10POS 0.5MM 6"

Technical Specifications

Parameters and characteristics for this part

Specification	AFFC-050-10-153-11

Cable Type	FPC, FFC
Length	152.4 mm
Length	6 in
Length - Exposed Ends [x]	3.5 mm
Length - Exposed Ends [x]	0.138 in
Number of Conductors	10
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Termination Style	Number of Conductors	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Length	Length	Cable Type
Assmann WSW Components AFFC-050-18-076-11	Backers on Both Sides Top on Both Sides	18	3.5 mm	0.138 in	0.5 mm	0.02 in	3 in	76.2 mm	FFC FPC
Assmann WSW Components AFFC-050-30-051-11	Backers on Both Sides Top on Both Sides	30	3.5 mm	0.138 in	0.5 mm	0.02 in	2 in	50.8 mm	FFC FPC
Assmann WSW Components AFFC-050-36-153-11	Backers on Both Sides Top on Both Sides	36	3.5 mm	0.138 in	0.5 mm	0.02 in	6 in	152.4 mm	FFC FPC
Assmann WSW Components AFFC-050-15-102-11	Backers on Both Sides Top on Both Sides	15	3.5 mm	0.138 in	0.5 mm	0.02 in	4 in	101.6 mm	FFC FPC
Assmann WSW Components AFFC-050-17-153-11	Backers on Both Sides Top on Both Sides	17	3.5 mm	0.138 in	0.5 mm	0.02 in	6 in	152.4 mm	FFC FPC
Assmann WSW Components AFFC-050-10-102-11	Backers on Both Sides Top on Both Sides	10	3.5 mm	0.138 in	0.5 mm	0.02 in	4 in	101.6 mm	FFC FPC
Assmann WSW Components AFFC-050-15-051-11	Backers on Both Sides Top on Both Sides	15	3.5 mm	0.138 in	0.5 mm	0.02 in	2 in	50.8 mm	FFC FPC
Assmann WSW Components AFFC-050-50-102-11	Backers on Both Sides Top on Both Sides	50	3.5 mm	0.138 in	0.5 mm	0.02 in	4 in	101.6 mm	FFC FPC
Assmann WSW Components AFFC-050-10-153-11	Backers on Both Sides Top on Both Sides	10	3.5 mm	0.138 in	0.5 mm	0.02 in	6 in	152.4 mm	FFC FPC
Assmann WSW Components AFFC-050-40-051-11	Backers on Both Sides Top on Both Sides	40	3.5 mm	0.138 in	0.5 mm	0.02 in	2 in	50.8 mm	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position FFC, FPC Cable 0.020" (0.50mm) 6.000" (152.40mm)
