3010-40-002-12-00
ActiveCnC Tech, LLC

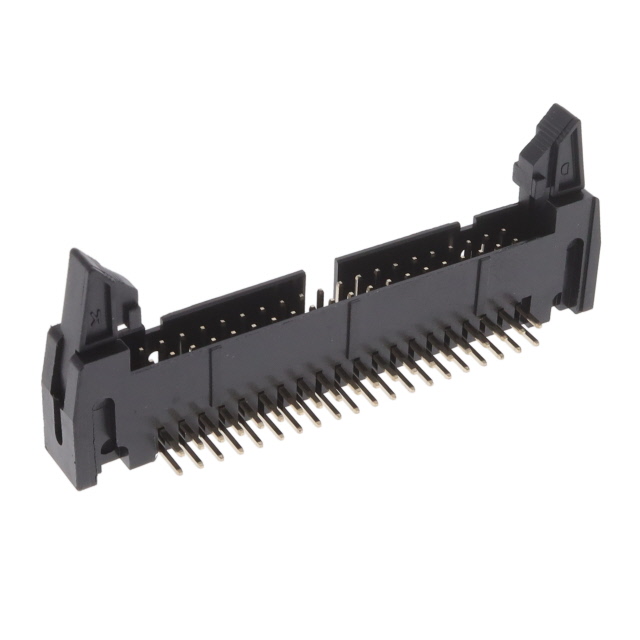

CONN HEADER R/A 40POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
3010-40-002-12-00
ActiveCnC Tech, LLC
CONN HEADER R/A 40POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3010-40-002-12-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post [x] | 0.134 in |
| Contact Length - Post [x] | 3.4 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Keying Slot |
| Insulation Height | 0.327 " |
| Insulation Height | 8.3 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
3010-40 Series
| Part | Shrouding | Style | Current Rating (Amps) | Contact Finish - Mating | Mounting Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Voltage Rating | Contact Shape | Contact Type | Features | Termination | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Insulation Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Material | Number of Positions | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Row Spacing [x] | Row Spacing | Contact Finish | Contact Finish Thickness | Cable Termination | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | Shrouded - 4 Wall | Board to Cable/Wire | 3 A | Gold | Through Hole | Latch Lock/Eject Hooks Long | -40 °C | 105 ░C | UL94 V-0 | All | 17 mm | 0.669 " | 250 VAC | Square | Male Pin | Keying Slot | Solder | 2 | 0.134 in | 3.4 mm | Header | Polybutylene Terephthalate (PBT) | 2.54 mm | 0.1 in | Brass | 40 | Flash | 0.1 in | 2.54 mm | |||||||||
CnC Tech, LLC | Shrouded - 4 Wall | Board to Cable/Wire | 3 A | Gold | Through Hole | Latch Lock/Eject Hooks Short | -40 °C | 105 ░C | UL94 V-0 | All | 17 mm | 0.669 " | 250 VAC | Square | Male Pin | Keying Slot | Solder | 2 | 0.134 in | 3.4 mm | Header | Polybutylene Terephthalate (PBT) | 2.54 mm | 0.1 in | Brass | 40 | Flash | 0.1 in | 2.54 mm | |||||||||
CnC Tech, LLC | Shrouded - 4 Wall | Board to Cable/Wire | 3 A | Gold | Surface Mount | Latch Lock/Eject Hooks Long | -40 °C | 105 ░C | UL94 V-0 | All | 17 mm | 0.669 " | 250 VAC | Square | Male Pin | Keying Slot | Solder | 2 | Header | Nylon 9T Polyamide (PA9T) | 2.54 mm | 0.1 in | Brass | 40 | Flash | 0.1 in | 2.54 mm | |||||||||||
CnC Tech, LLC | Shrouded - 4 Wall | Board to Cable/Wire | 3 A | Gold | Through Hole Right Angle | Latch Lock/Eject Hooks Short | -40 °C | 105 ░C | UL94 V-0 | All | 250 VAC | Square | Male Pin | Keying Slot | Solder | 2 | 0.134 in | 3.4 mm | Header | Polybutylene Terephthalate (PBT) | 2.54 mm | 0.1 in | Brass | 40 | Flash | 0.1 in | 2.54 mm | 0.327 " | 8.3 mm | |||||||||
CnC Tech, LLC | Free Hanging (In-Line) | Push-Pull | Male Pin | Polarizing Key | 2 | Header | 40 | 0.1 in | 2.54 mm | Gold | Flash | IDC | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.86 | |
| 10 | $ 1.62 | |||
| 432 | $ 1.31 | |||
| 864 | $ 1.21 | |||
Description
General part information
3010-40 Series
Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
