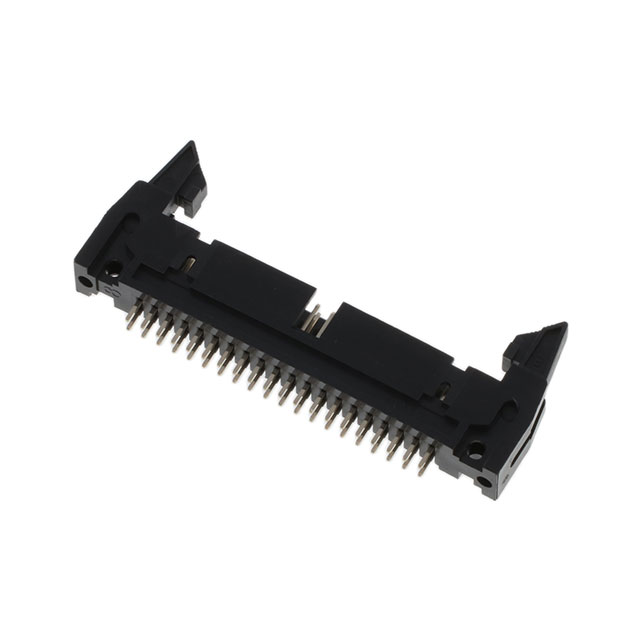

3010-40-001-12-00

Active

CnC Tech, LLC

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Soldering Guide 3X10,3X20,3221 Series

3010-40-001-12-00

Active

CnC Tech, LLC

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Soldering Guide 3X10,3X20,3221 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3010-40-001-12-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Height [z]	17 mm
Insulation Height [z]	0.669 "
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

3010-40 Series

Part	Shrouding	Style	Current Rating (Amps)	Contact Finish - Mating	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Contact Shape	Contact Type	Features	Termination	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Positions	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Row Spacing [x]	Row Spacing	Contact Finish	Contact Finish Thickness	Cable Termination	Pitch [x]	Pitch [x]
CnC Tech, LLC 3010-40-001-13-00	Shrouded - 4 Wall	Board to Cable/Wire	3 A	Gold	Through Hole	Latch Lock/Eject Hooks Long	-40 °C	105 ░C	UL94 V-0	All	17 mm	0.669 "	250 VAC	Square	Male Pin	Keying Slot	Solder	2	0.134 in	3.4 mm	Header	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Brass	40	Flash	0.1 in	2.54 mm
CnC Tech, LLC 3010-40-001-12-00	Shrouded - 4 Wall	Board to Cable/Wire	3 A	Gold	Through Hole	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	UL94 V-0	All	17 mm	0.669 "	250 VAC	Square	Male Pin	Keying Slot	Solder	2	0.134 in	3.4 mm	Header	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Brass	40	Flash	0.1 in	2.54 mm
CnC Tech, LLC 3010-40-003-13-00	Shrouded - 4 Wall	Board to Cable/Wire	3 A	Gold	Surface Mount	Latch Lock/Eject Hooks Long	-40 °C	105 ░C	UL94 V-0	All	17 mm	0.669 "	250 VAC	Square	Male Pin	Keying Slot	Solder	2			Header	Nylon 9T Polyamide (PA9T)	2.54 mm	0.1 in	Brass	40	Flash	0.1 in	2.54 mm
CnC Tech, LLC 3010-40-002-12-00	Shrouded - 4 Wall	Board to Cable/Wire	3 A	Gold	Through Hole Right Angle	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	UL94 V-0	All			250 VAC	Square	Male Pin	Keying Slot	Solder	2	0.134 in	3.4 mm	Header	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Brass	40	Flash	0.1 in	2.54 mm	0.327 "	8.3 mm
CnC Tech, LLC 3010-40-041-11-00					Free Hanging (In-Line)	Push-Pull									Male Pin	Polarizing Key		2			Header					40						0.1 in	2.54 mm	Gold	Flash	IDC	2.54 mm	0.1 in
