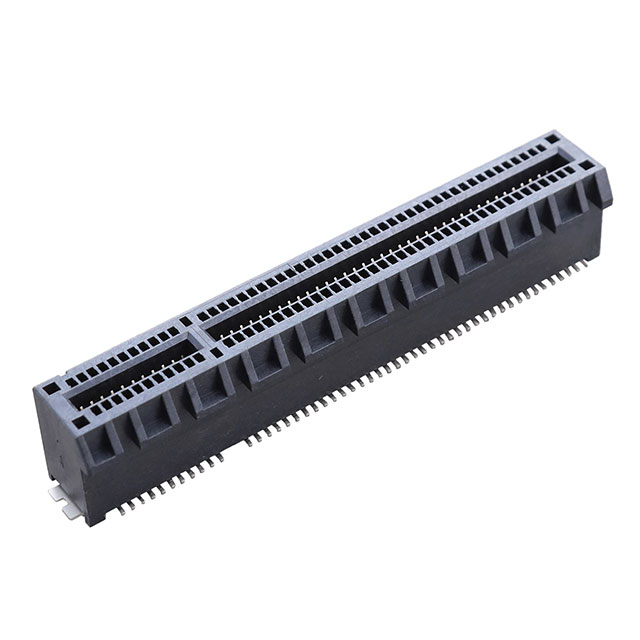

10146065-112Y0LF
ActiveAmphenol ICC (FCI)
CONN PCI EXP FMALE 98POS 0.039
Deep-Dive with AI
Search across all available documentation for this part.
10146065-112Y0LF
ActiveAmphenol ICC (FCI)
CONN PCI EXP FMALE 98POS 0.039
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10146065-112Y0LF |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Features | Board Guide, Locking Ramp, Solder Retention, Pick and Place |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 98 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.33 | |
| 10 | $ 7.16 | |||
| 25 | $ 6.46 | |||
| 40 | $ 6.14 | |||
| 80 | $ 5.70 | |||
| 230 | $ 5.11 | |||
| 440 | $ 4.78 | |||
| 945 | $ 4.44 | |||
| 2400 | $ 4.14 | |||
Description
General part information
10146065 Series
98 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
