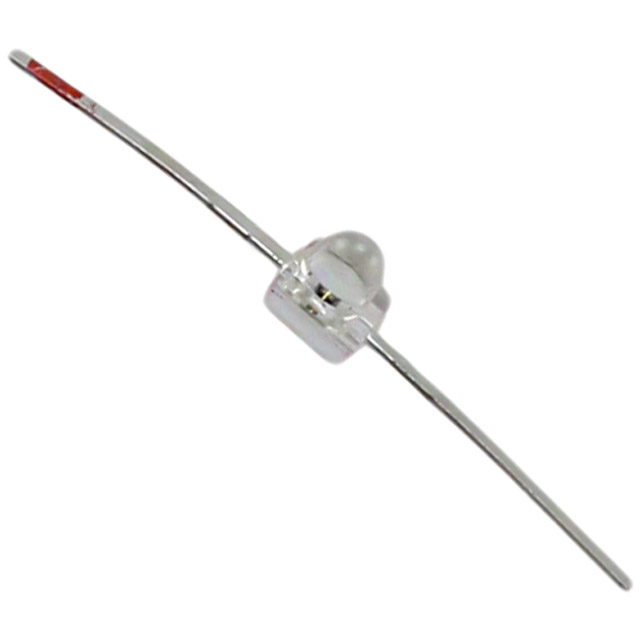

IR91-21C

Active

Everlight Electronics Co Ltd

INFRARED LED, 1.9MM, 1-ELEMENT, 940NM, ROHS COMPLIANT, SUBMINIATURE, PLASTIC, SMD, 2 PIN

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

INFRARED LED, 1.9MM, 1-ELEMENT, 940NM, ROHS COMPLIANT, SUBMINIATURE, PLASTIC, SMD, 2 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	IR91-21C

Current - DC Forward (If) (Max)	65 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-25 °C
Orientation	Top View
Package / Case	Axial, Flat Leads
Radiant Intensity (Ie) Min @ If [Min]	3 mW/sr
Type	Infrared (IR)
Viewing Angle	25 °
Wavelength	940 nm

Part	Viewing Angle	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Type	Wavelength
Everlight Electronics Co Ltd IR91-21C	25 °	Axial Flat Leads	3 mW/sr	65 mA	Infrared (IR)	85 C	-25 °C	Top View	Through Hole	940 nm
Everlight Electronics Co Ltd IR91-21C/TR7	25 °	2-SMD Gull Wing	3 mW/sr	65 mA	Infrared (IR)	85 C	-25 °C	Top View	Surface Mount	940 nm
Everlight Electronics Co Ltd IR91-21C/TR9	25 °	Axial Flat Leads	3 mW/sr	65 mA	Infrared (IR)	85 C	-25 °C	Top View	Through Hole	940 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.17

General part information

Infrared (IR) Emitter 940nm 1.2V 65mA 3mW/sr @ 20mA 25° Axial, Flat Leads

Technical documentation and resources

No documents available
