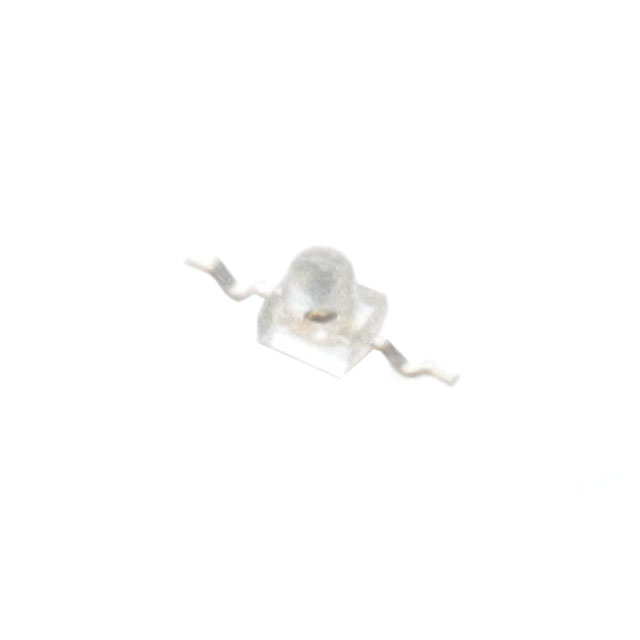

IR91-21C/TR9
ActiveEverlight Electronics Co Ltd
EMITTER IR 940NM 65MA AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IR91-21C/TR9
ActiveEverlight Electronics Co Ltd
EMITTER IR 940NM 65MA AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IR91-21C/TR9 |
|---|---|
| Current - DC Forward (If) (Max) | 65 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | Axial, Flat Leads |
| Radiant Intensity (Ie) Min @ If [Min] | 3 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 25 ° |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.26 | |||
| Tape & Reel (TR) | 1000 | $ 0.20 | ||
| 2000 | $ 0.18 | |||
| 5000 | $ 0.17 | |||
| 10000 | $ 0.16 | |||
| 25000 | $ 0.16 | |||
| 50000 | $ 0.15 | |||
Description
General part information
IR91-21 Series
Infrared (IR) Emitter 940nm 1.2V 65mA 3mW/sr @ 20mA 25° Axial, Flat Leads
